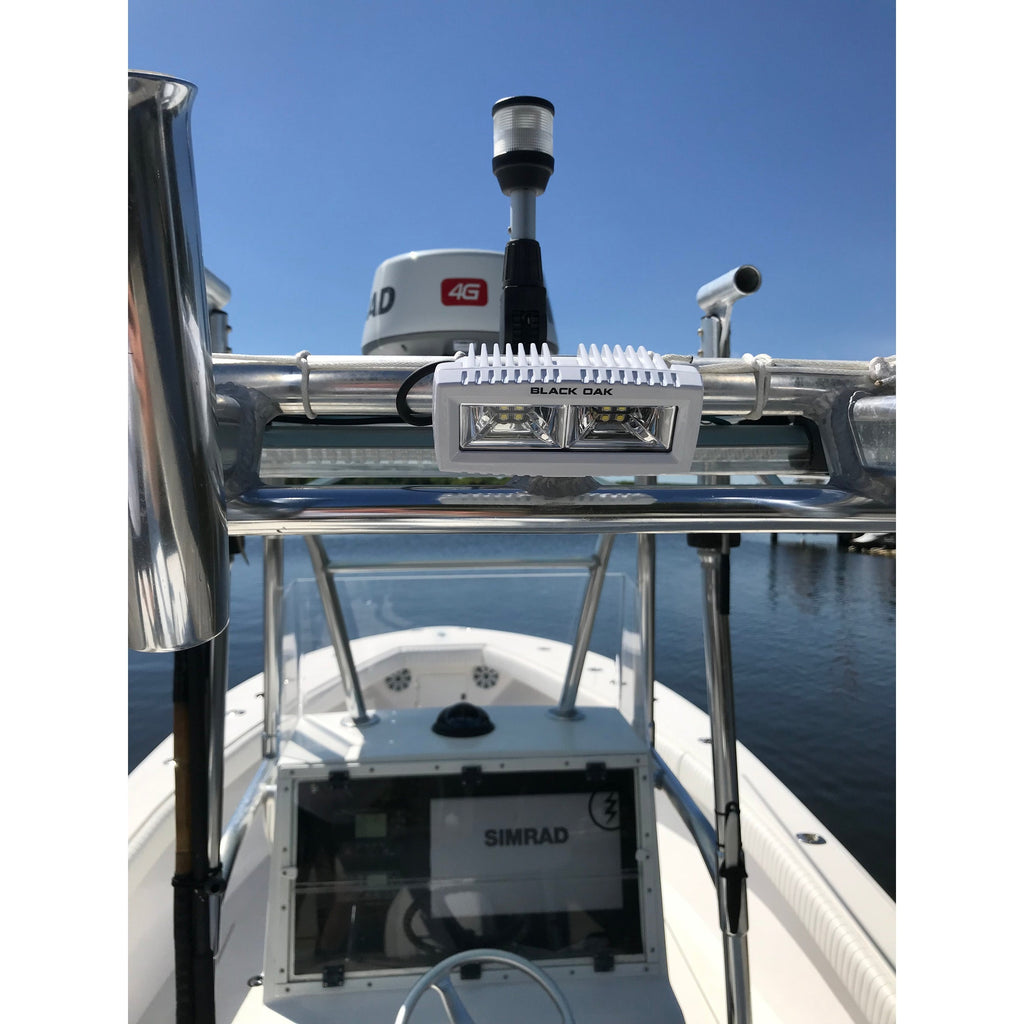

Black Oak Marine Spreader Scene White

SKU: 4MS-S
Pre Order
RM936.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 monthsLearn more.

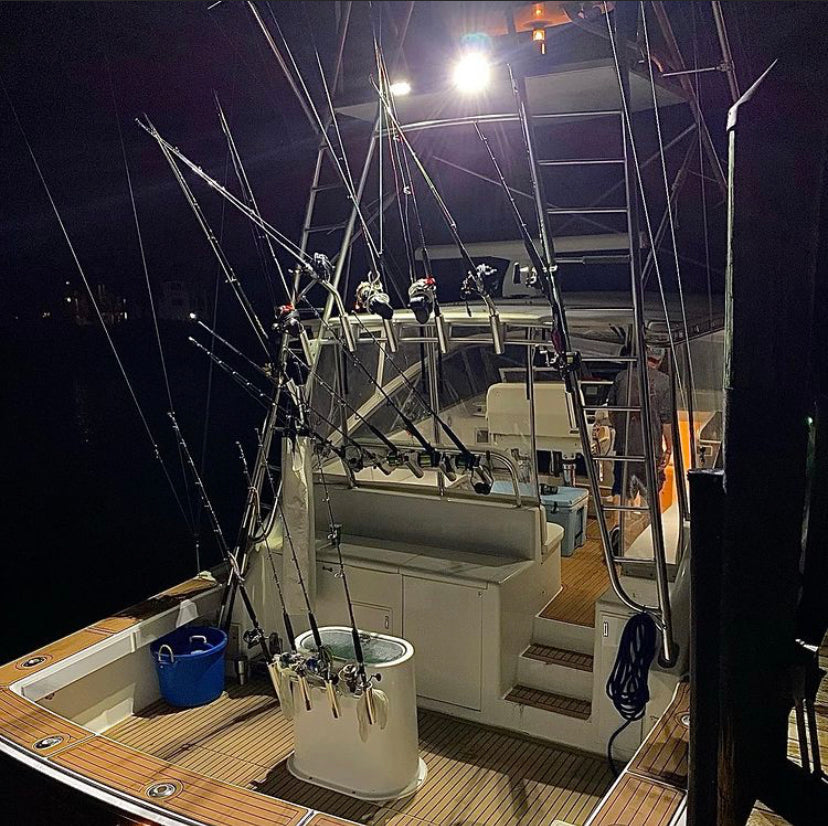

Powerful Scene Lighting for Your Deck & Cockpit

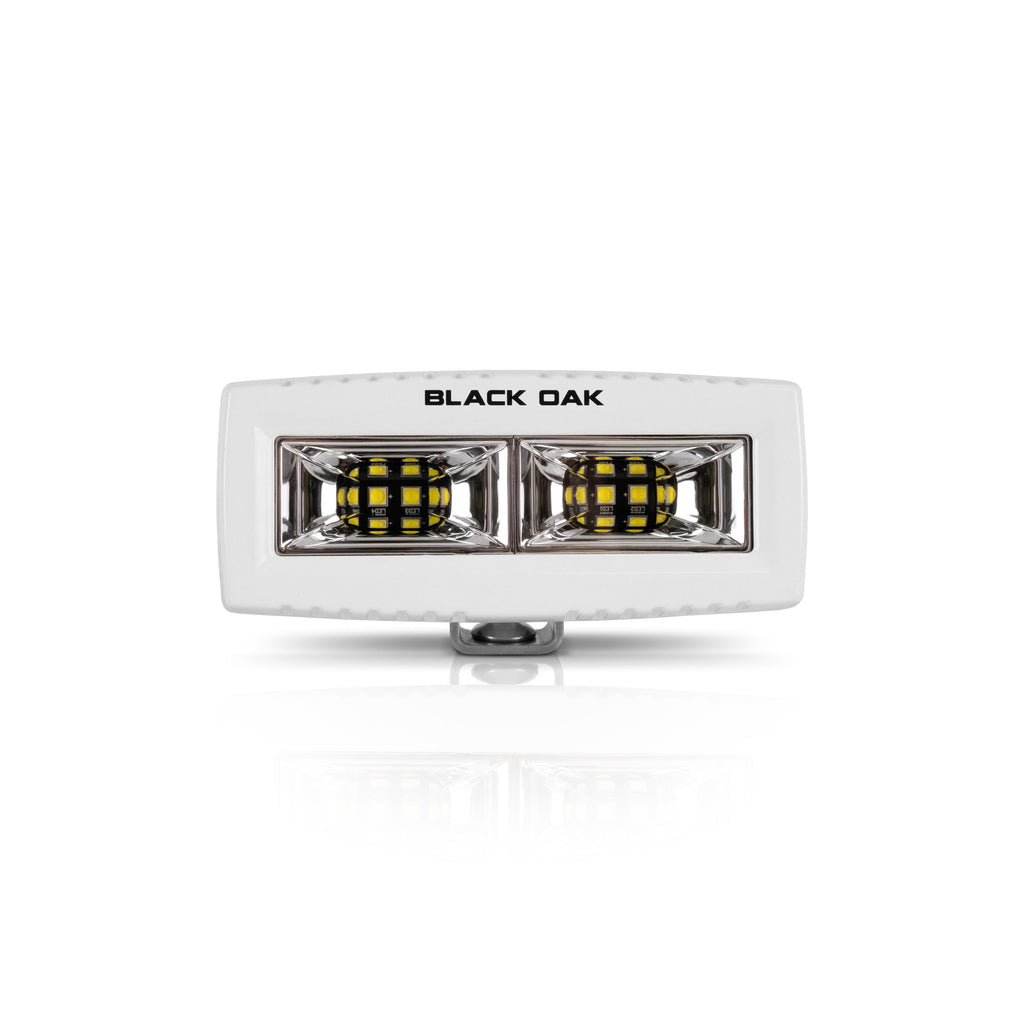

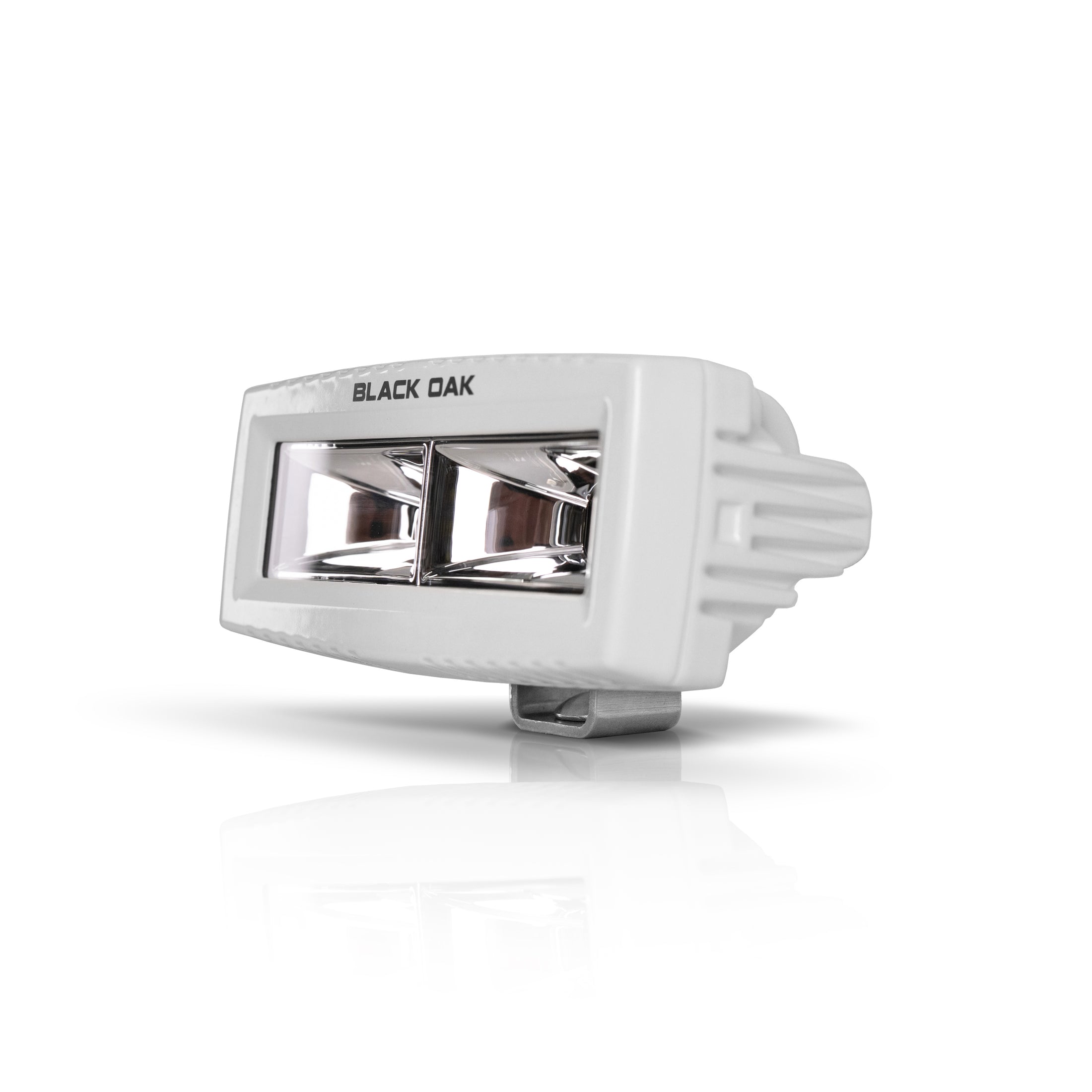

Illuminate your boat like never before with the Black Oak Pro Series 4″ Marine Spreader Light – Scene. This compact, high-output fixture is engineered to provide a wide 120° beam pattern that bathes decks, cockpits, and work areas in smooth, consistent light — perfect for night fishing, docking, and general marine visibility. Its rugged, marine-ready construction is built to withstand salt spray, moisture, and the harsh conditions of life on the water.



Despite its small footprint, this spreader light delivers bright, reliable illumination using premium LEDs that produce a strong 3,120-lumen output. The wide-angle scene optics give you expansive coverage without harsh hotspots, making it ideal as standalone lighting or paired with other marine lights to create a complete nighttime illumination solution for your vessel.

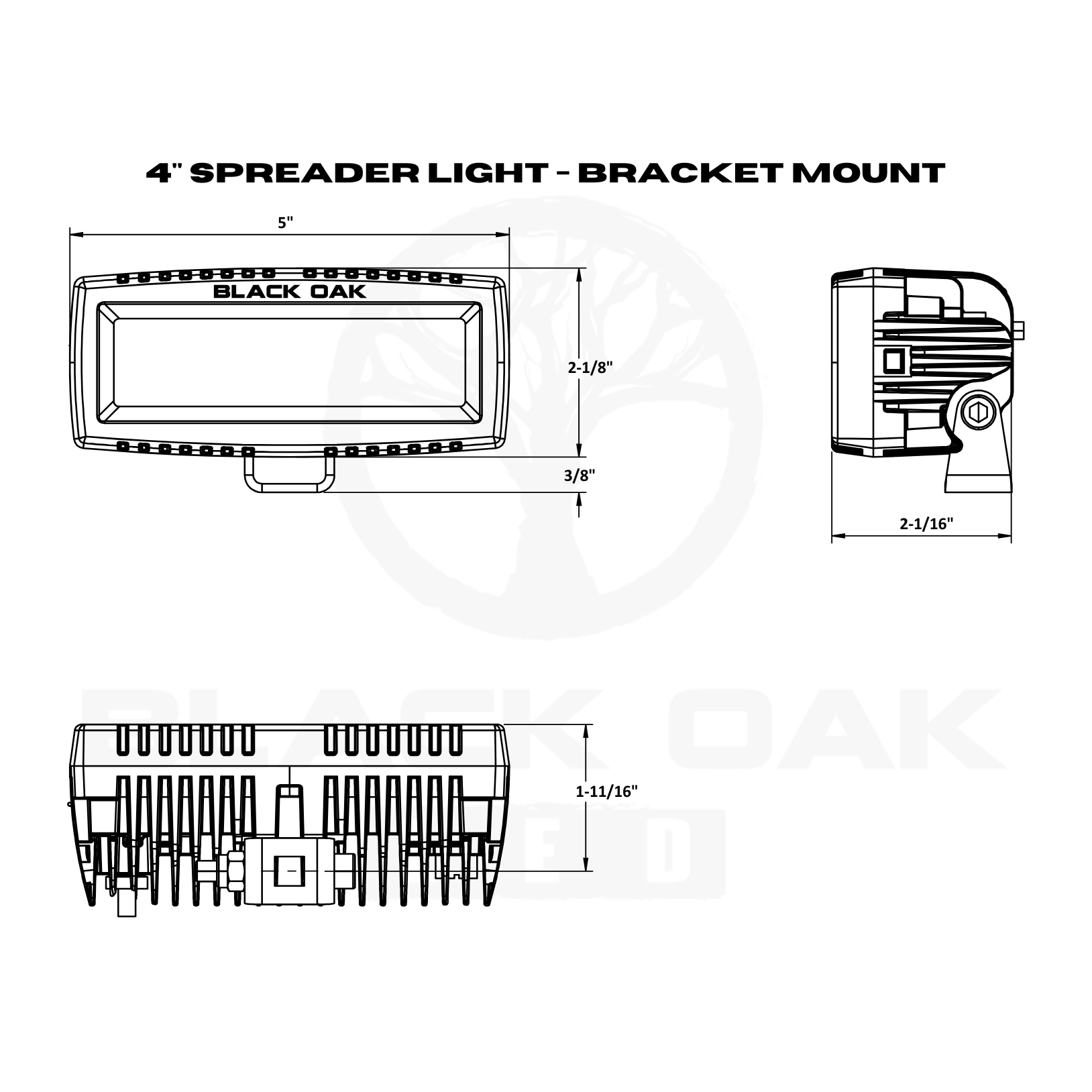

SIZES & DIMENSIONS

Heigth (5) x Length (7) x Width (5) Inch

WHAT'S IN THE BOX
  • (1) 4" Spreader Light
  • Pigtail Deutsch Connector - For easy wiring
  • Stainless Mounting Bracket and Hardware
FEATURES
  • Lifetime Warranty
  • IP69K Rated Housing – sealed against salt, spray, humidity, and washdowns
  • Wide 120° Scene Beam – smooth, even deck and cockpit illumination

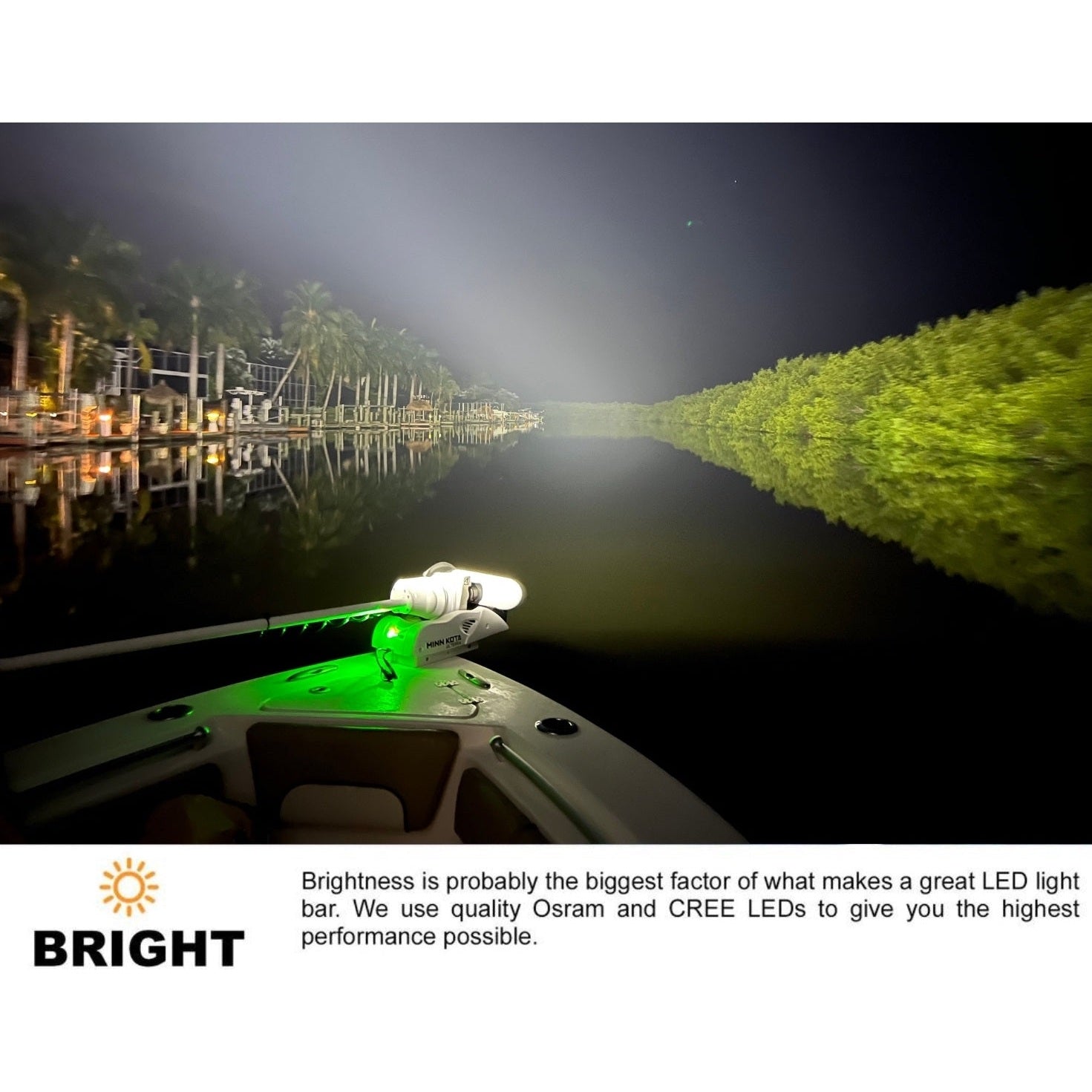

  • Premium CREE LED Chips – maximum efficiency and long-term reliability
  • 316 Stainless Steel Mounting Bracket – corrosion-resistant for harsh marine environments
  • Ceramic-Coated Finish – superior UV and saltwater corrosion protection
  • Military-Grade Breather – prevents internal moisture build-up and pressure imbalance
  • Premium Lexan Lens – impact-resistant and will not fade or yellow over time
  • Low Amp Draw – efficient output without overloading your electrical system

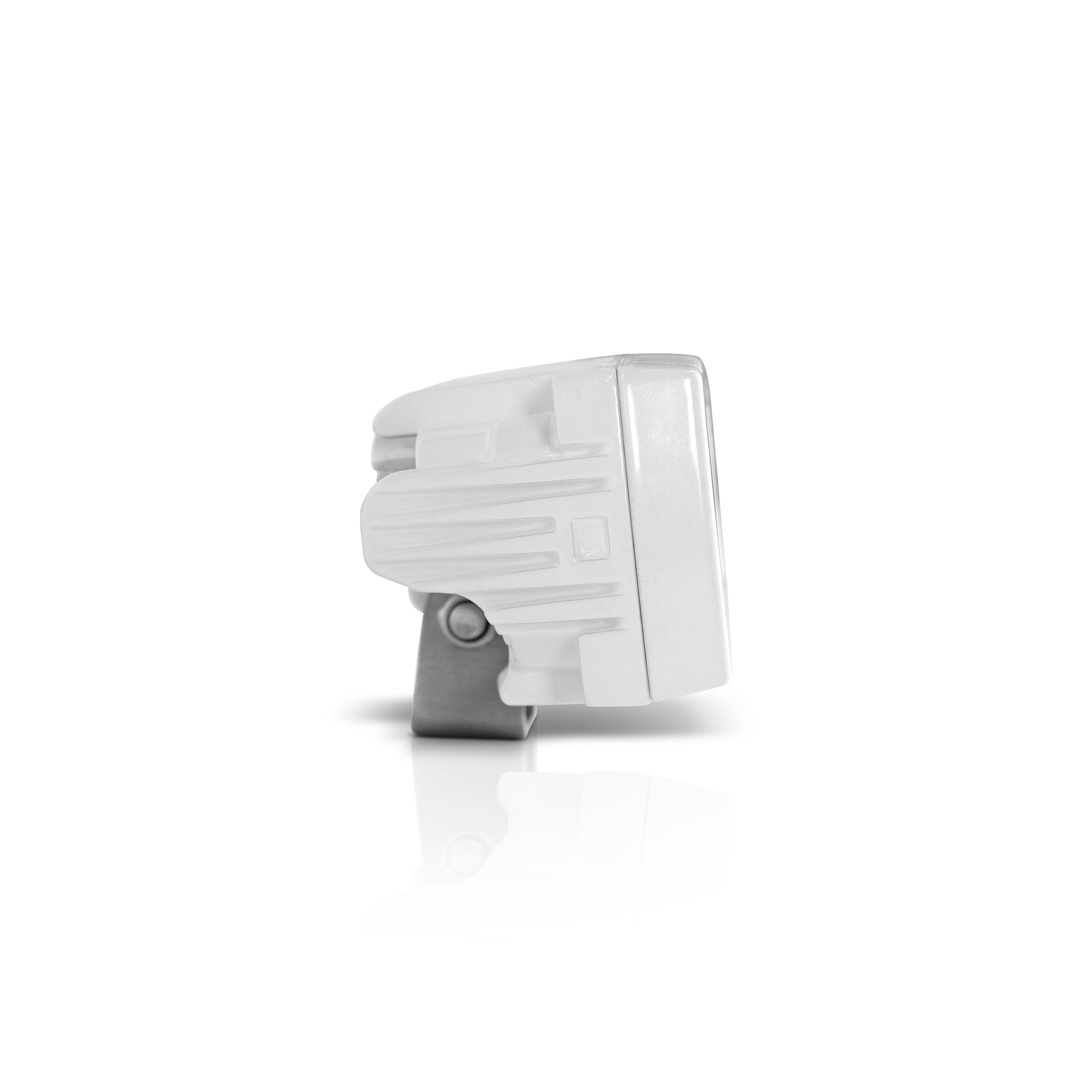

  • Adjustable Bracket Design – fine-tune the angle for optimal spread and coverage

Wide Scene Coverage

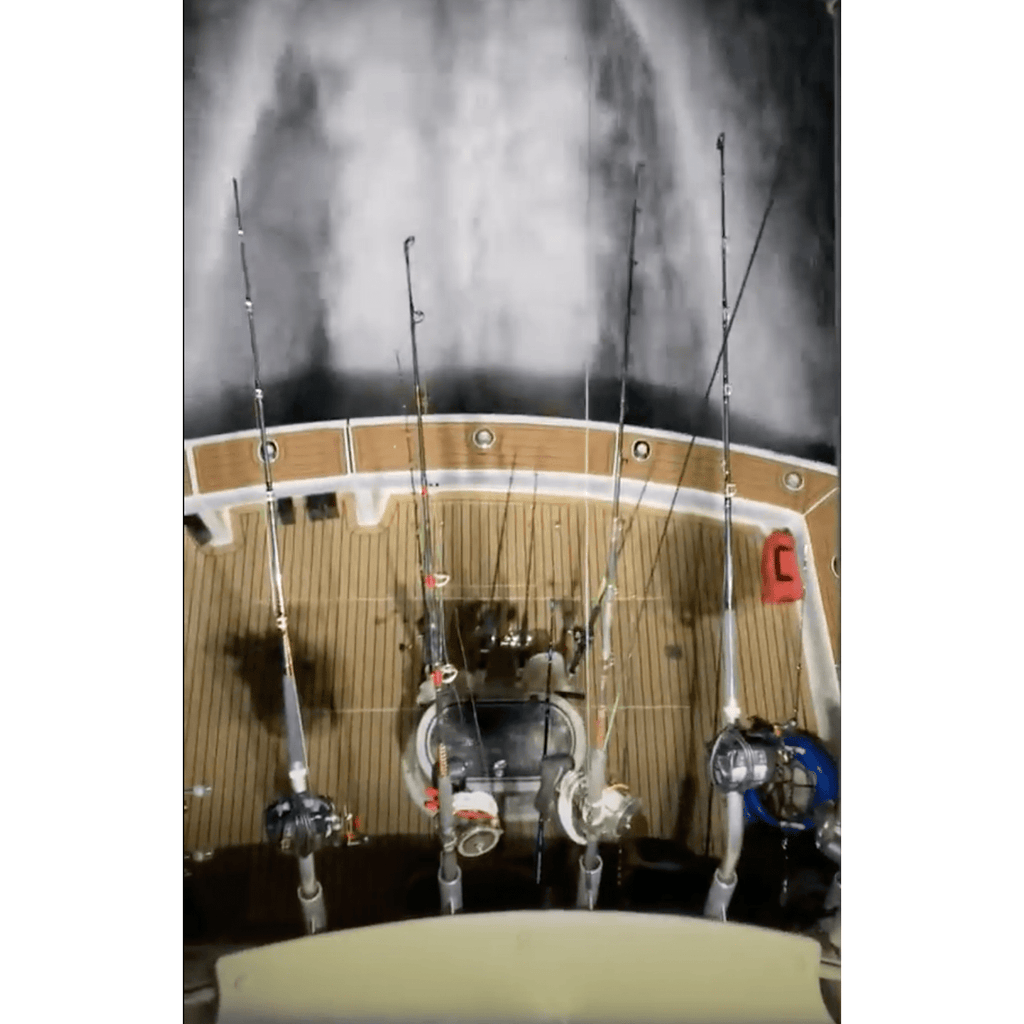

Engineered with a 120° scene beam, this light delivers smooth, even illumination across your entire work area — no harsh hotspots, just usable light where you need it most.

Ultra-Compact Single Row Design

At just 2 inches tall, this low-profile bar fits cleanly into tight spaces like bumpers, grilles, racks, and trailers without sacrificing output.


Simple, Secure Installation

Includes mounting hardware and a Deutsch-style connector for fast, reliable installation so you can get up and running with minimal effort.


Built for the Marine Environment. Backed for Life.

The Black Oak 4″ Marine Spreader Light is engineered to thrive in harsh sun, salt spray, and demanding offshore conditions. Featuring a rugged, fully sealed housing and premium components, it delivers reliable wide-area illumination night after night — all backed by Black Oak’s Limited Lifetime Warranty. When you need lighting you can trust on the water, this spreader is built to perform for the long haul.

SPECIFICATIONS

Power & Performance

  • Total Wattage: 40
  • Total Amp Draw: 2.8
  • Operating Voltage: 10 - 30V DC
  • Raw Lumens: 3,120
  • Color Temperature: 6,000
  • LED Diode Qty: 4
  • LED Chip: Cree
  • Beam Pattern: Scene
  • Beam Angle: 120°
  • Mode: On/Off
  • Dimmable? Yes! (Separate dimmer module Required, NOT included)

Durability & Lifespan

  • Life Expectancy: 50,000 Hours
  • Operating Temp: -40° to 145° F
  • -40° to 62° C
  • Waterproof Rating: IP69K
  • Warranty: Limited Lifetime
  • Guarantee: 30 Day Money Back

Wiring & Installation

  • Cord Lead From Light: 16"
  • Wire Harness Included? No
  • Wire Harness Length: N/A
  • Wire Gauge: 16 AWG
  • Fuse Size: 5 Amp
  • Connector Type: 2 Pin Deutsch
  • Mounting Bolt Size: 5/16"

General

  • Weight: .35 Lbs
  • SKU: 4BMS-S
