HF-742 Helmsman Compass

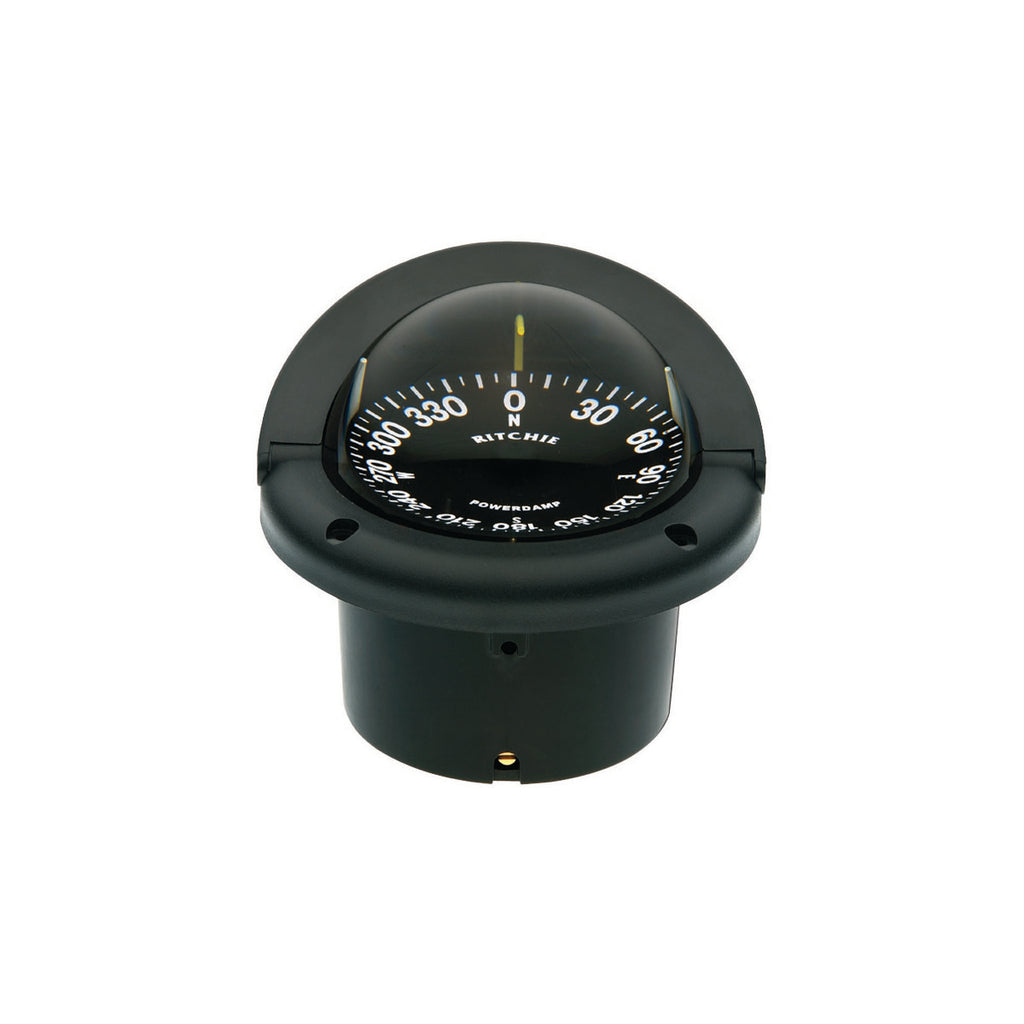

Ritchie HF-742 Helmsman Compass - Flush Mount - Black Product Description

Ritchie Helmsman Flush Mount Compass3.75" Dial with Black HousingRitchie Compasses provide accuracy from the inside out. When properly sized, installed and compensated a marine compass is the most important instrument on any boat. It will provide accurate, trouble-free heading references under the most adverse conditions without relying on electricity, radio signals or satellite communications. The most important criteria when selecting a compass are dial size and mounting style. Quality components aid accuracy, smooth response, stability and trouble-free operation. Modern technology makes Ritchie Compasses the World's Best Marine Compasses.

Ritchie Navigation HF742 Attributes

Ritchie Navigation HF742 Features & Benefits

• 3 3/4" PowerDamp Flat Dial

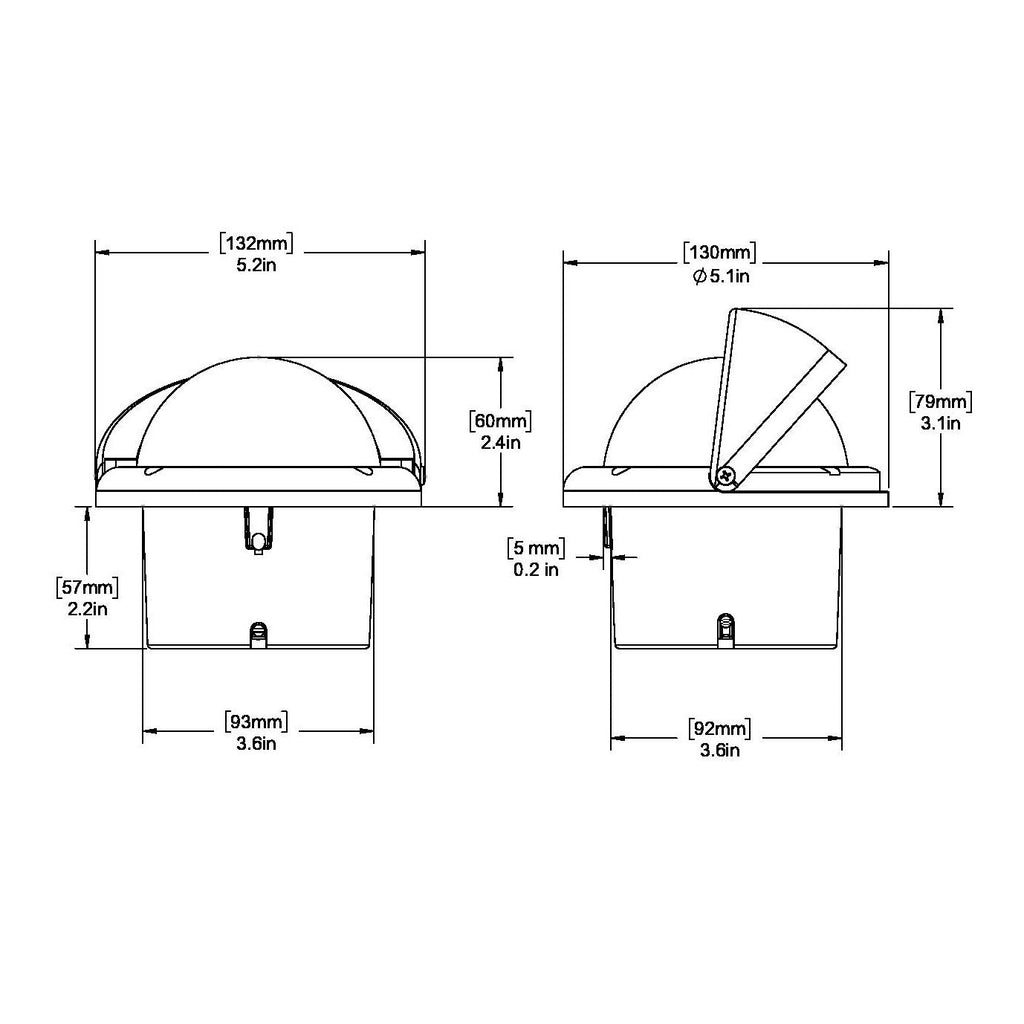

• Easily Installed, Fits 4" (10.16 cm) Mounting Hole.
• Built-in Compensators to Easily Adjust for Deviation
• Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement
• Powerful DirectiveForce Magnets for Fast Heading Lock-on
• Movable Sun Shield, 45 Degree Lubber Lines
• High Temperature Composite Construction for Extended Operating Range
• Adapter Rings Available. Sold separately. 6" (15.24). Retrofits Existing Mounting Hole for Model No. HF-72 order H-ABLK. For Model No. HF-72W order H-AWHT.
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Helmsman Compass

Helmsman Compass Features:

• 3-3/4" PowerDamp Flat Dial
• Easily Installed, Fits 4" (10.16cm) Mounting Hole
• Exclusive Built-in Green NiteVu Night Illumination
• Built-in Compensators to Easily Adjust for Deviation
• Scientifically Matched Sapphire Jewel and Hardened Steel Pivot Dial Movement
• Powerful DirectiveForce Magnets for Fast Heading Lock-on
• Movable Sun Shield
• 45 Degree Lubber Lines
• High Temperature Composite Construction for Extended Operating Range
• Adapter Rings Available. Sold separately. 6" (15.24). Retrofits Existing Mounting Hole for Model No. HF-72 order H-ABLK. For Model No. HF-72W order H-AWHT
• 100% Repairable
• Exclusive 5-Year Ritchie Warranty

Approx. Shipping Weight: 2lbs (907g)

Notes: Comes standard with 12V lighting. 24 & 32V lighting options are available. Some custom built OEM models may have different lighting.
