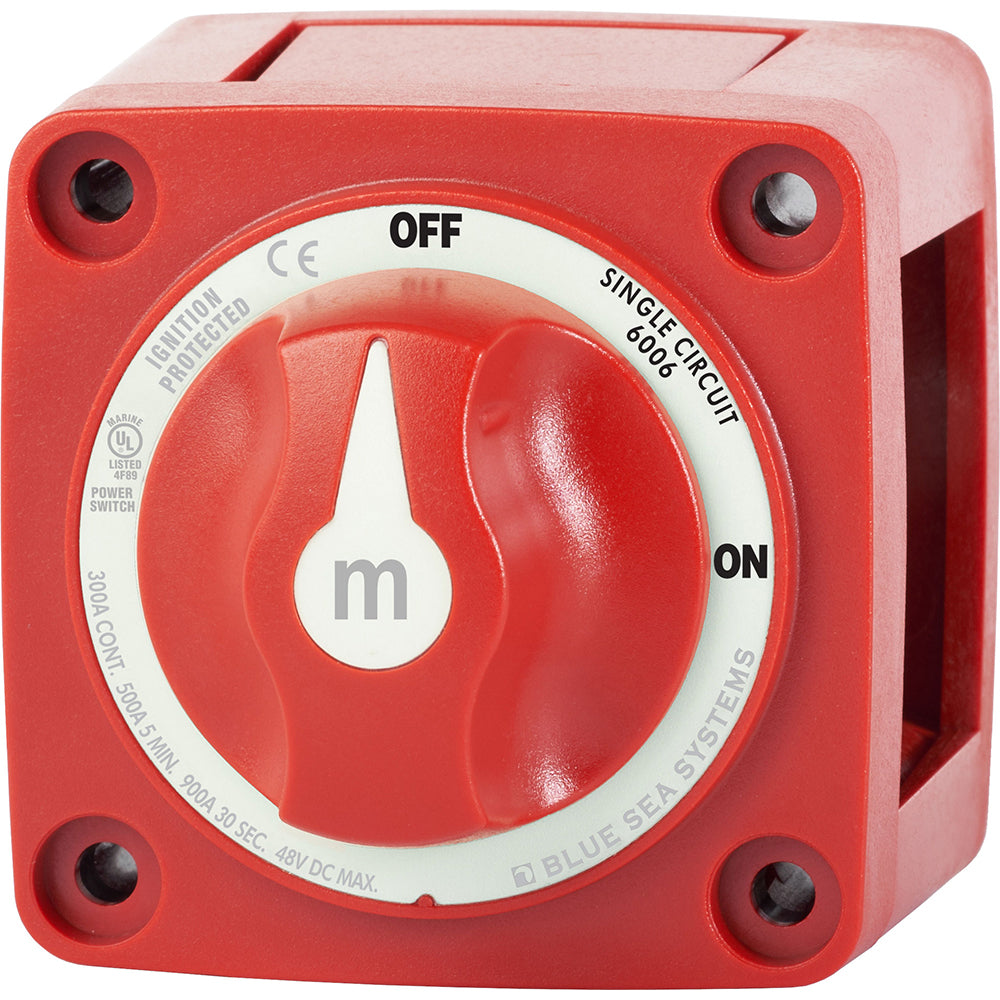

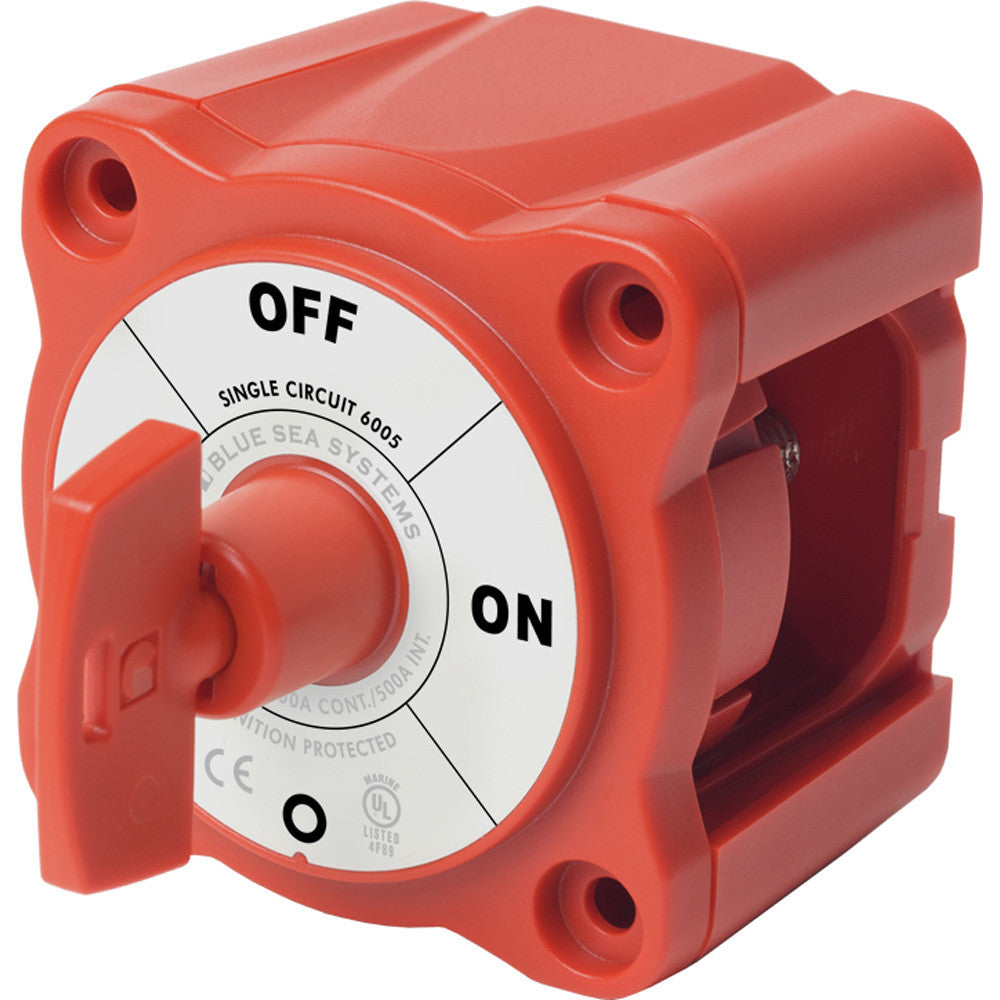

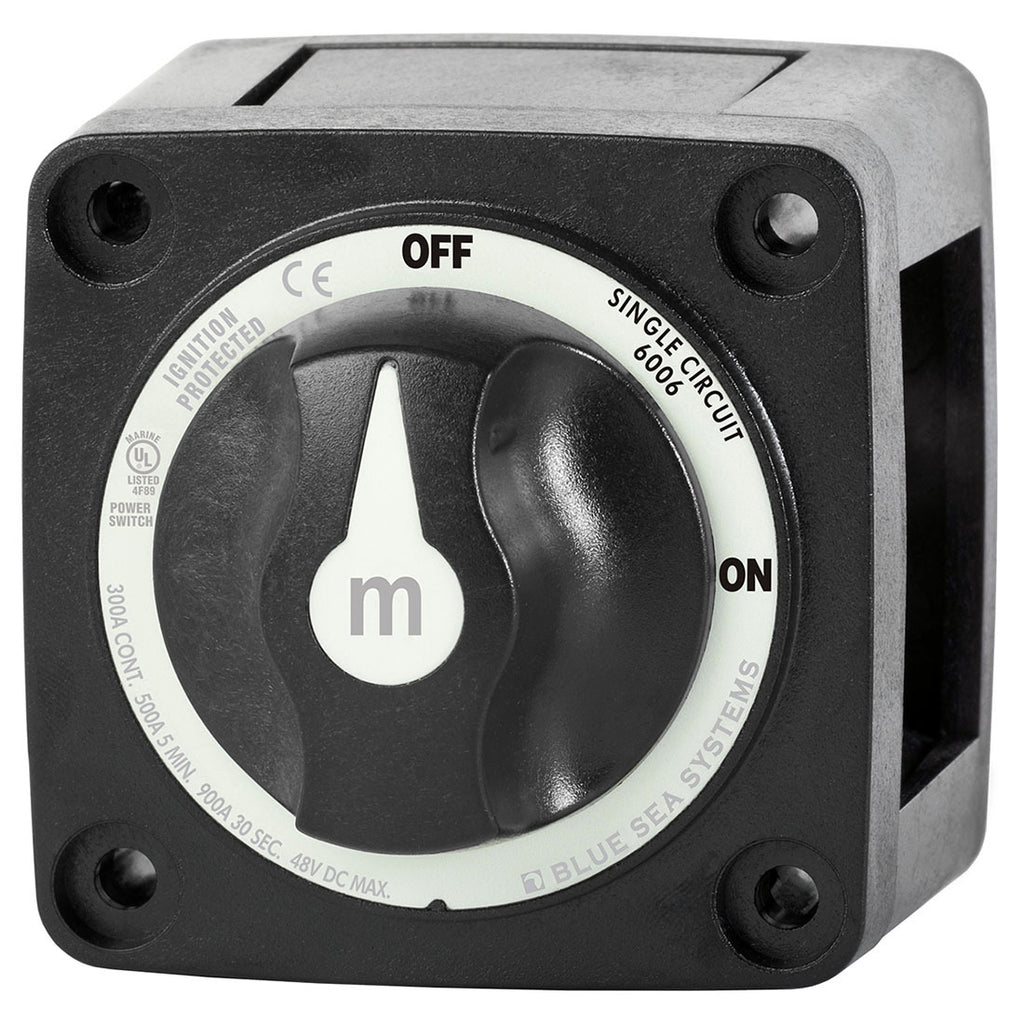

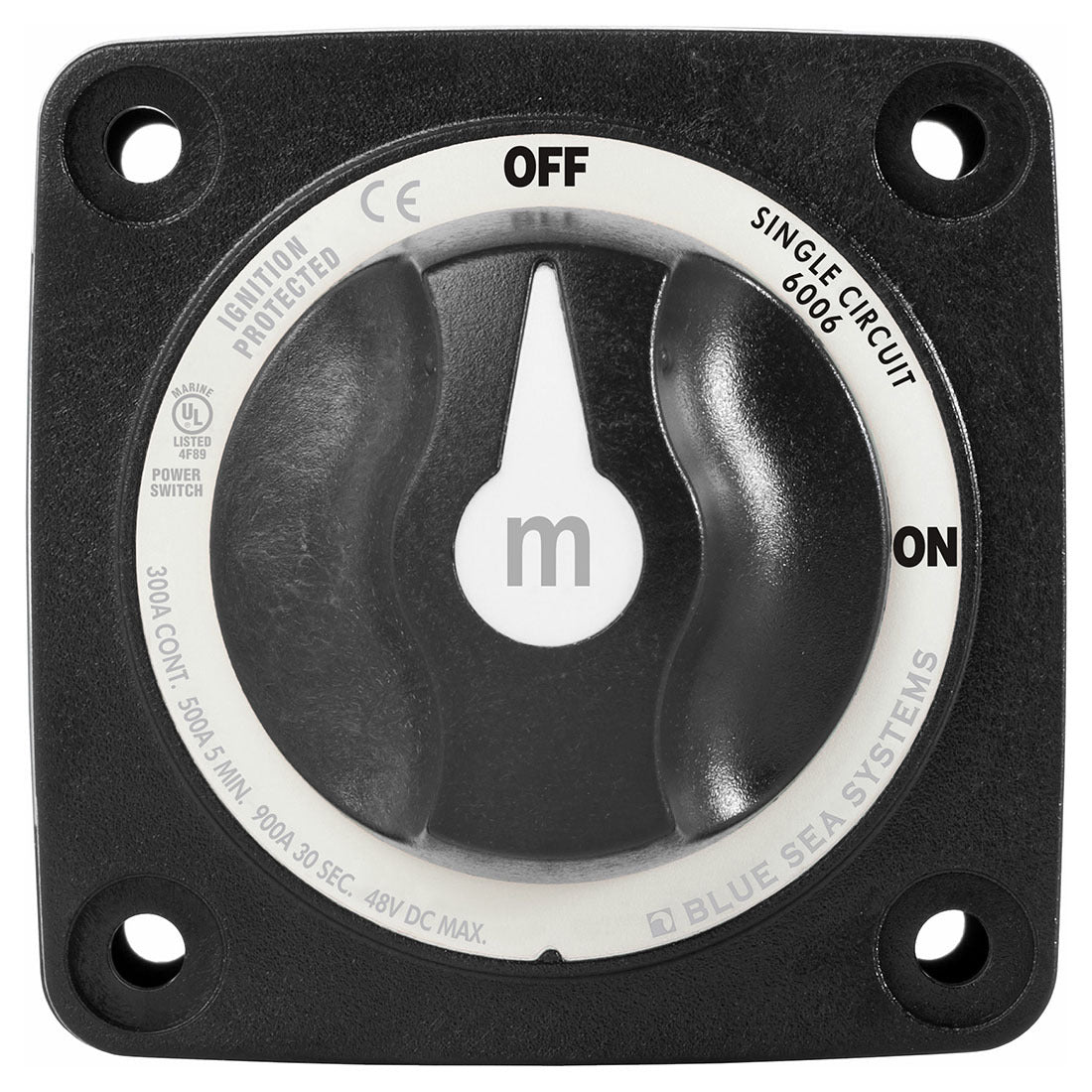

m-Series Mini On-Off Battery Switch with Key

Blue Sea System

m-Series Mini On-Off Battery Switch with Key

SKU: 6006

Pre Order

RM275.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Switches a single battery to a single load group

ColorRed

Knob Option With Knob None

Switches a single battery to a single load group

Ignition protected—safe for installation aboard gasoline powered boats

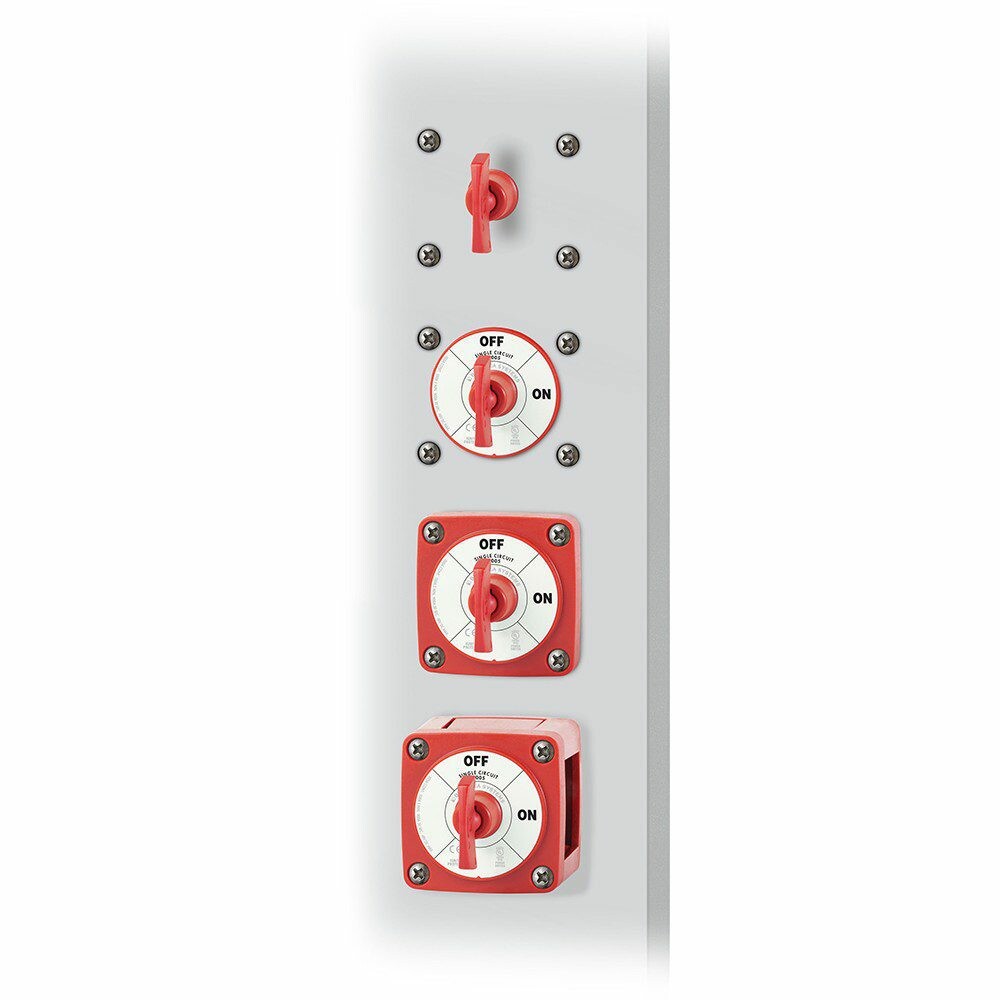

Case design allows surface, front panel, or rear panel mounting

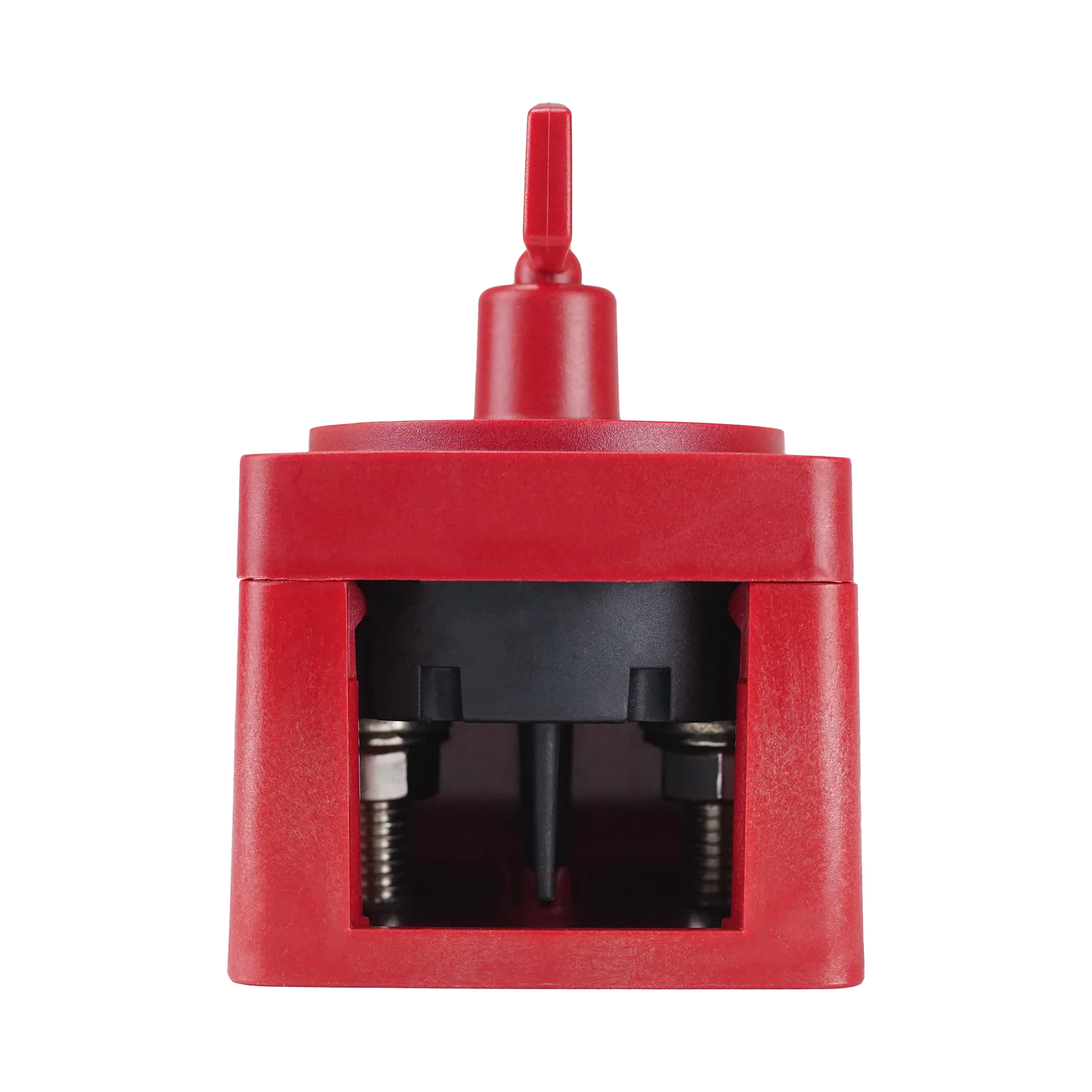

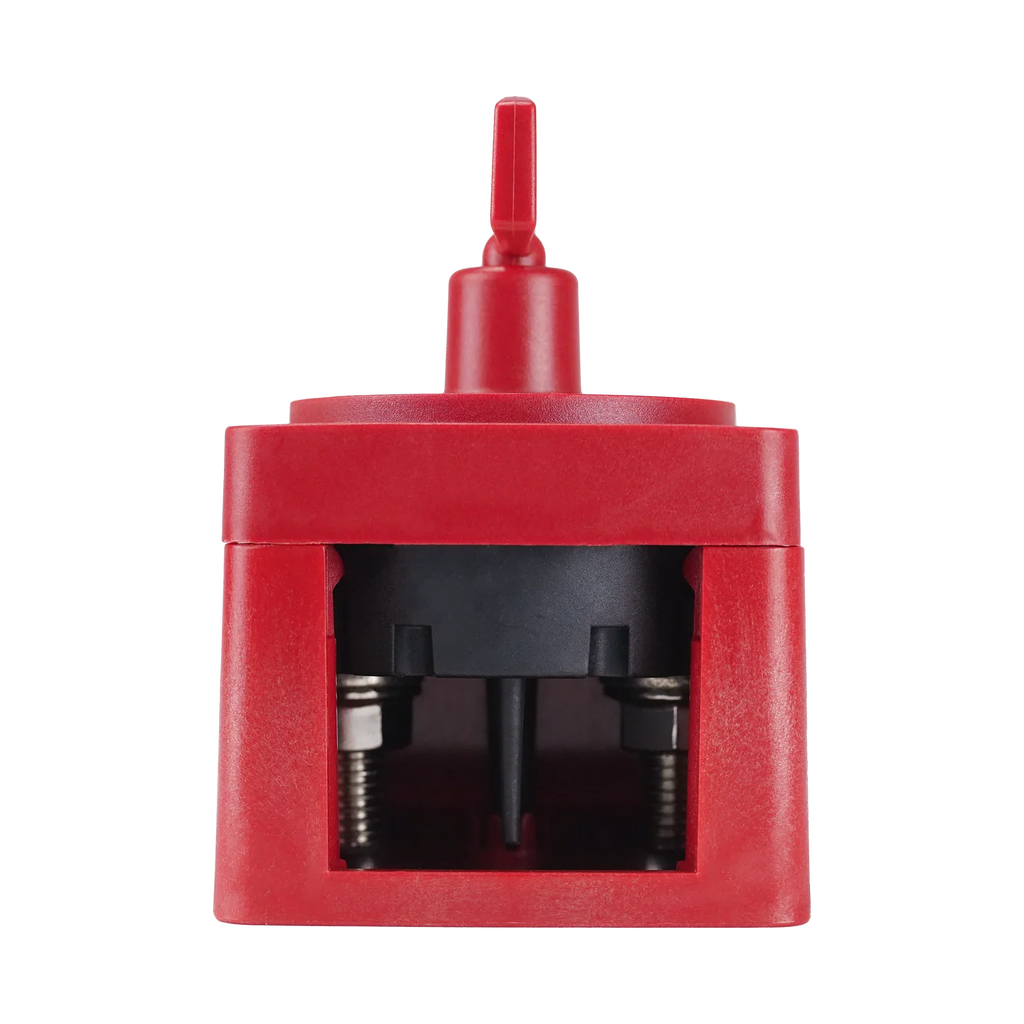

Isolating cover with snap-on sections protects rear contacts

Switch Type : Single Circuit ON-OFF

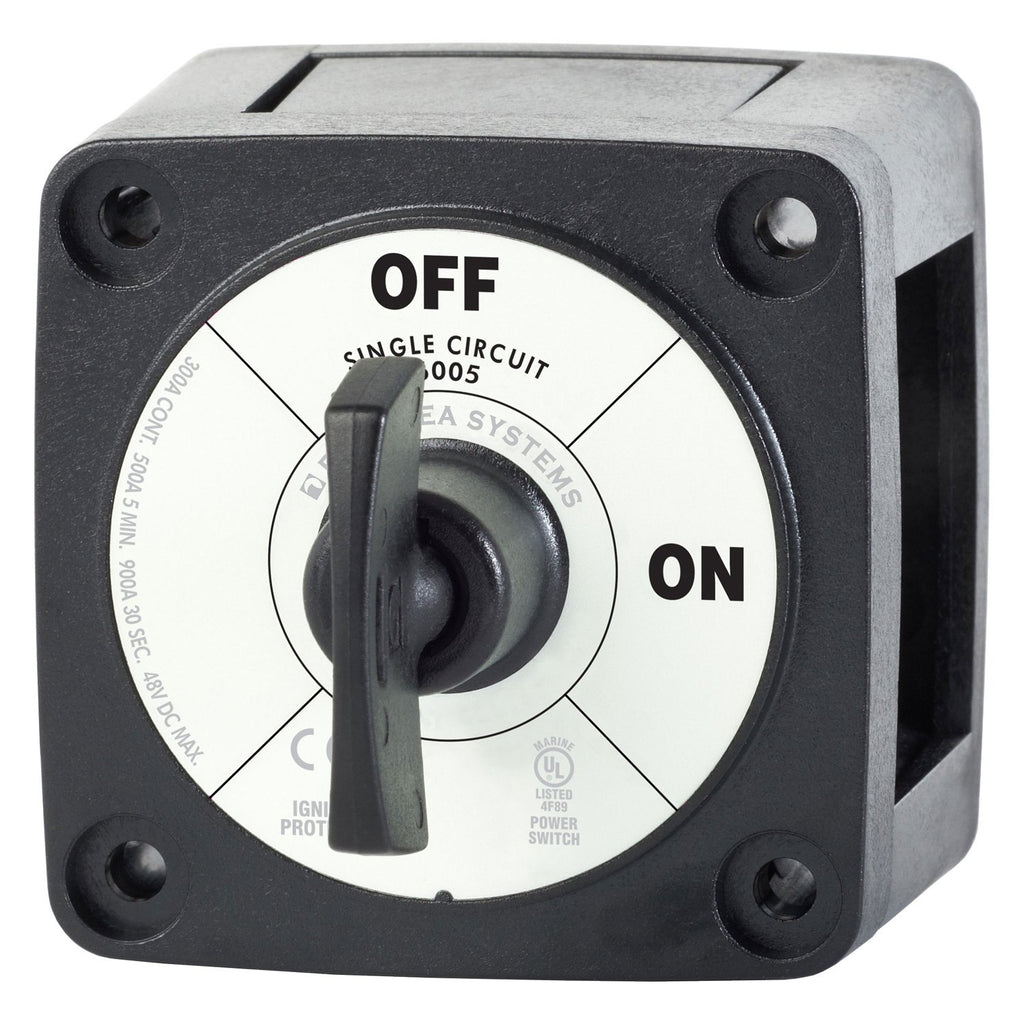

Color: Red or Gray
Switch Positions: 2
Battery Combine: No
Alternator Field Disconnect : No
Maximum Voltage: 48V DC
Stud Size: 3/8"
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Continuous Rating : 300A
Intermittent Rating : 500A (5 min)
Starting Rating 30 sec : 900A
Battery Inputs: 1
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
Mounting Holes: Accept #10 Screw
Stud Material: Tinned Copper
Stud Torque: 120 in-lb (13.56 Nm)
Switching Rating: 25A

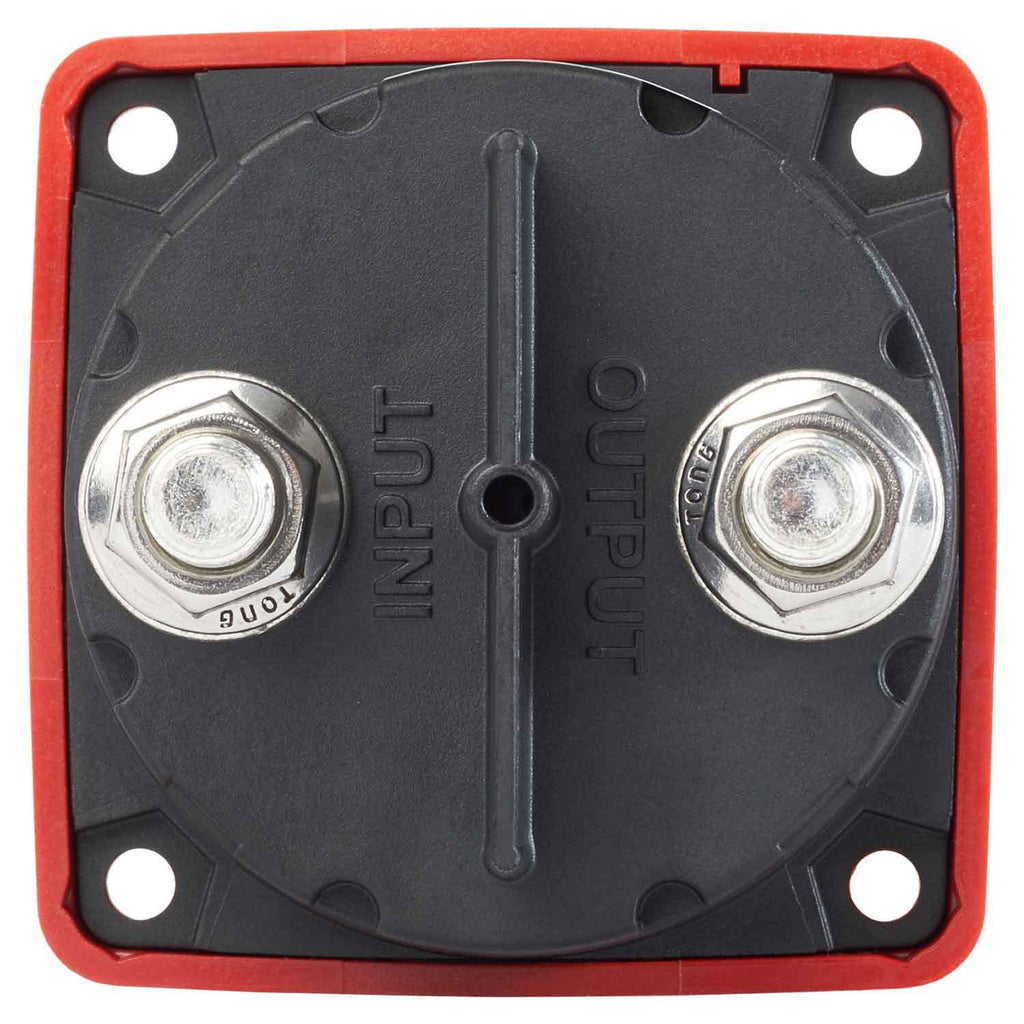

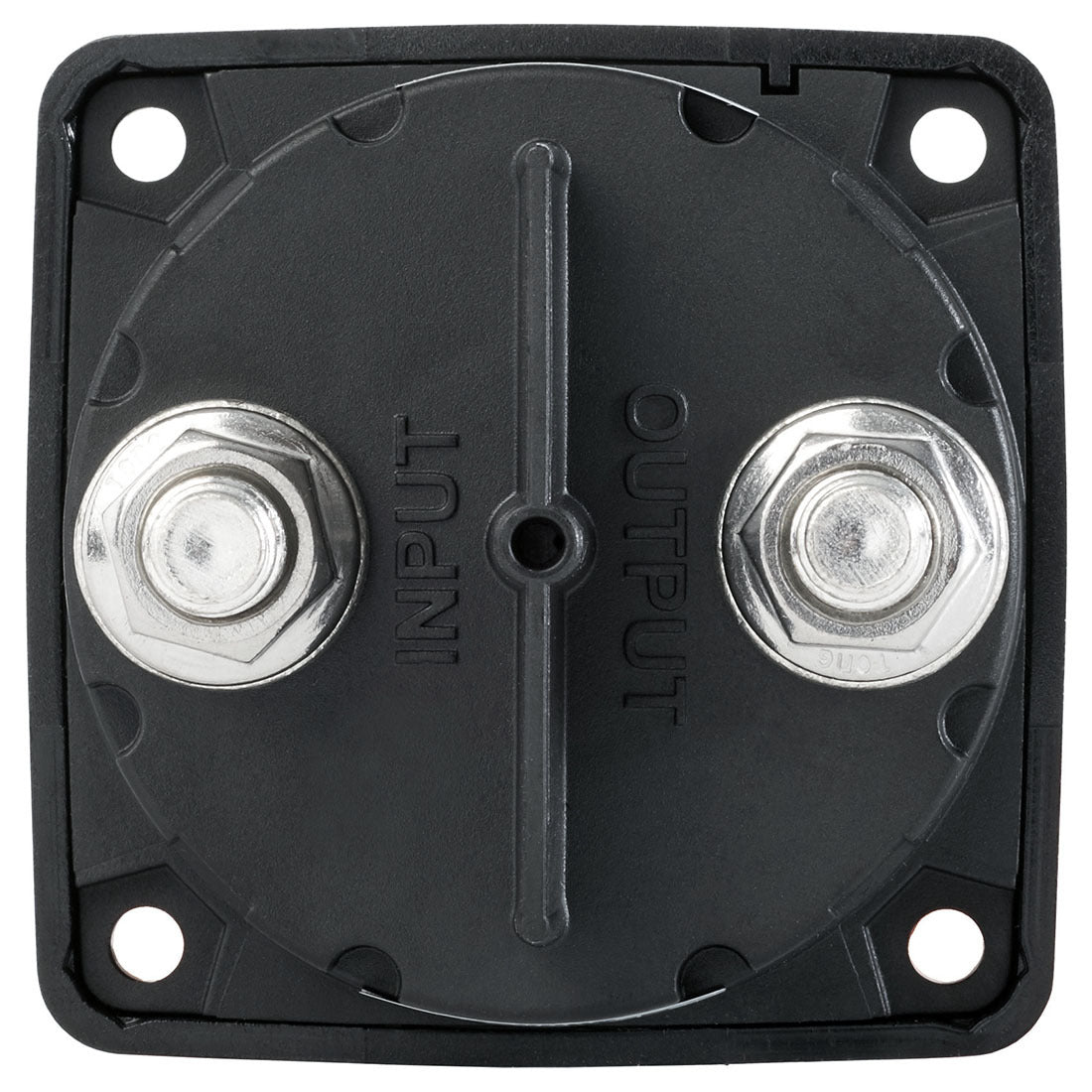

Terminal Stud Size: 3/8" - 16 (M10)
Weight: 0.62lb (0.28 kg)
Weight: 0.62lb (0.28 kg)

Dimensioned Drawing
