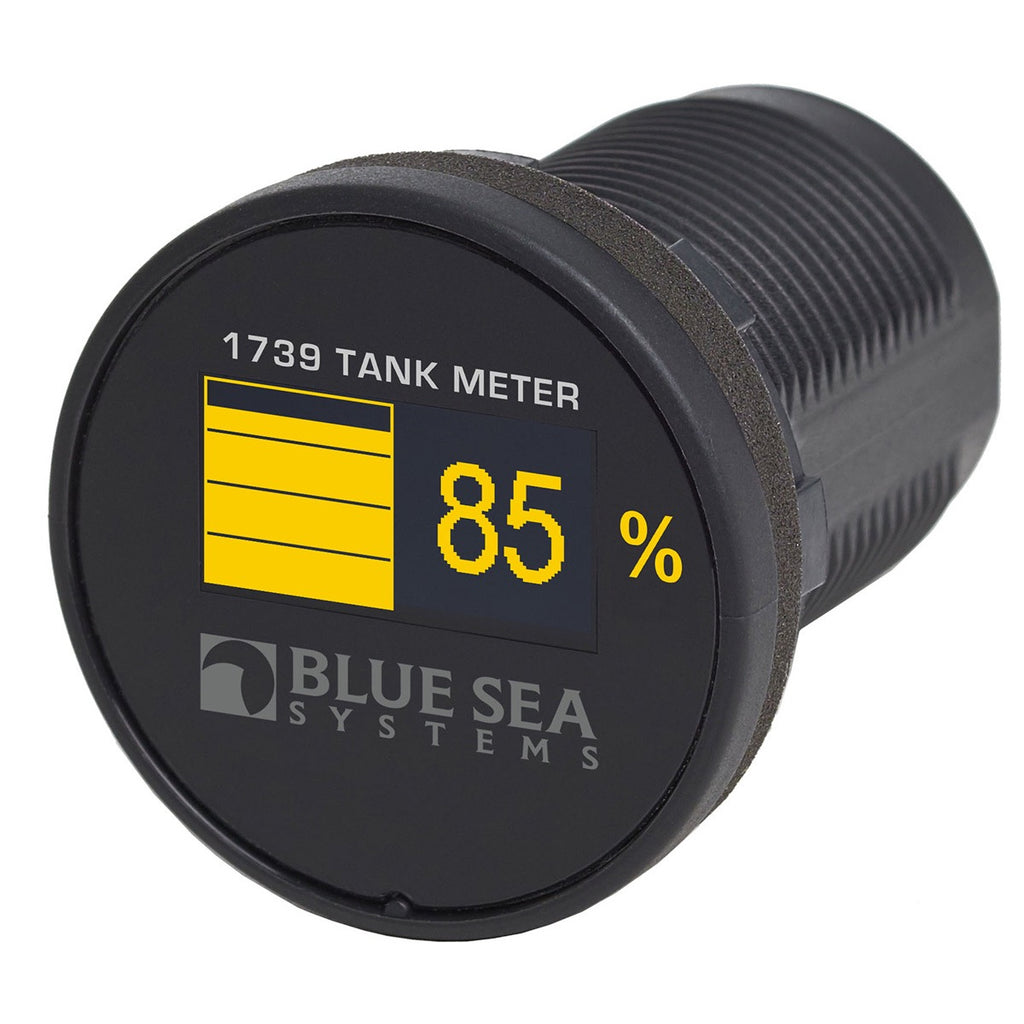

Mini OLED Tank Meter

Blue Sea System

Mini OLED Tank Meter

SKU: 1739
Pre Order
RM465.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Monitors essential system parameters on a bright, waterproof, daylight readable OLED screen
ColorYellow
SIZES & DIMENSIONS

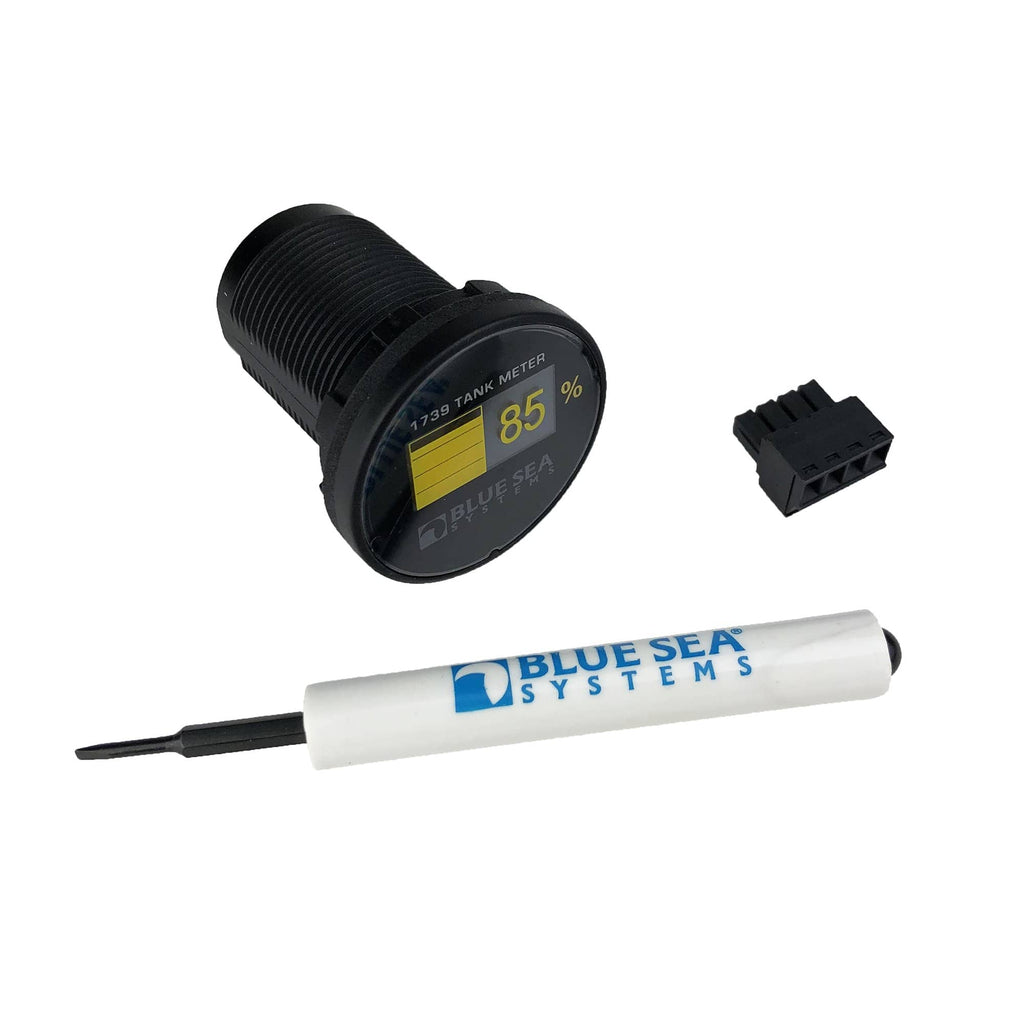

WHAT'S IN THE BOX
FEATURES
  • Compact size enables mounting in any convenient location
  • Reverse polarity protected
  • Mounts in a common 1-1/8 in hole
SPECIFICATIONS
  • Color : Yellow
  • Meter : Tank Meter
  • Nominal Voltage : 12V DC, 24V DC
  • Resolution : 0.05
  • Input Voltage : 8V–36V DCV
  • Compatible Senders : European: 10-180 Ohms, North American: 240-33 Ohms
  • Lifecycles : 100,000 hours
  • Operating Current : 17mA
  • Operating Temperature Range : -40°C – 70°C (-40°F – 158°F)
  • Weight : 0.30lb (0.14 kg)
DOCUMENTATIONS

Schematic
