Reactor™ 40 Hydraulic Corepack with SmartPump v2

Garmin

Reactor™ 40 Hydraulic Corepack with SmartPump v2

SKU: 010-02794-01
Pre Order
RM27,456.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

EVERY CAPTAIN NEEDS A CO-PILOT

Designed for sailboats and powerboats, this Reactor 40 autopilot steer-by-wire corepack gives you the extra hand you need, so you can explore paradise worry-free.
GHC™ Autopilot Instrument
SIZES & DIMENSIONS
  • Dimensions (H x W x D): 7 3/4" x 7 1/2" x 9 5/8" (197 mm x 190 mm x 244 mm)

CCU

  • Dimensions: 3 19/32" diameter (91.4 mm)

Buzzer/Alarm

  • Dimensions (L × Diameter): 29/32" × 1.0" (23 mm × 25 mm)

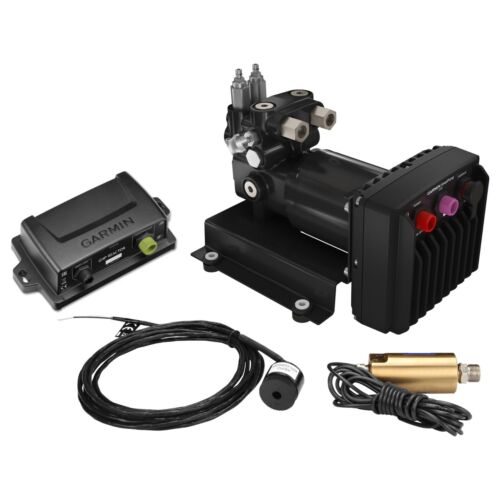

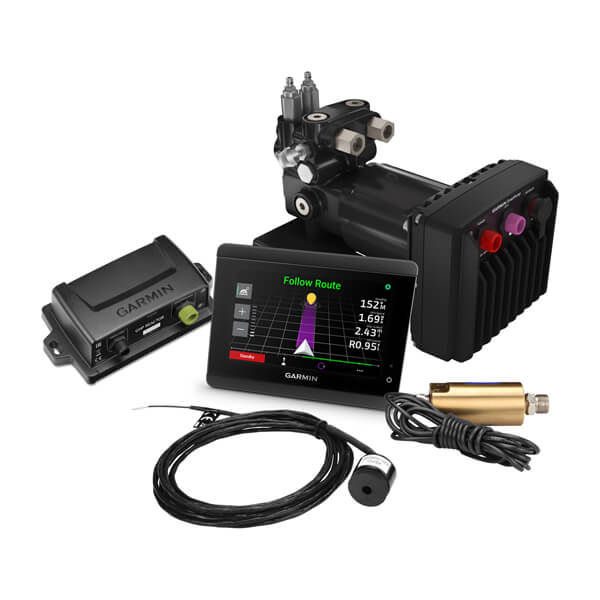

WHAT'S IN THE BOX

GHC™ 50

SmartPump v2

Reactor 40 CCU (Course Computer Unit)

ECU (Electronic Control Unit) power cable

Interconnect cable

Shadow Drive

Buzzer

NMEA 2000® drop cables (2 meters)

NMEA 2000 power cable

NMEA 2000 T-connectors

Male and female terminators

Documentation
FEATURES
  • This Reactor 40 standard corepack is the perfect companion for your boat’s steer-by-wire system.
  • Yes, it features a solid-state 9-axis AHRS. And yes, that means you can mount it nearly anywhere.
  • Even when you’re pitching or rolling, this autopilot reacts to sea conditions to keep you on course.
  • You just want to get on the water, so we made calibration fast and easy. That’s the power of simple.
  • Combine with your compatible Garmin chartplotter, and control your autopilot — from anywhere on your boat.
  • Want more? The optional GHC™ 50 autopilot instrument enhances your autopilot experience.
SPECIFICATIONS
  • Dimensions (H x W x D): 7 3/4" x 7 1/2" x 9 5/8" (197 mm x 190 mm x 244 mm)
  • Weight: 16.5 lbs (7.5 kg)
  • Temperature range: From 5°F to 131°F (from -15°C to 55°C)
  • Material: Electronics Control Unit (ECU) - fully gasketed, aluminum alloy; bracket - carbon steel; manifold - aluminum alloy; motor - aluminum alloy
  • Power cable length: 9 ft (2.7 m)
  • Power input: 11.5-30 Vdc
  • Fuse: 40 A, blade-type
  • Main power usage: standby - less than 1 A; engaged - 5-10 A; peak - 34 A
  • Flow rate: Configurable from 0 to 2.4 L per minute
  • Compatible with steering cylinder sizes from 4-24 cu in; 7 second lock to lock up to 17 cu in

CCU Specifications

  • Dimensions: 3 19/32" diameter (91.4 mm)
  • Weight: 5.6 oz (159 g)
  • Temperature range: From 5°F to 131°F (from -15°C to 55°C)
  • Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
  • CCU cable length: 9.5 ft (3 m)
  • NMEA 2000 power input: 9-16 V
  • NMEA 2000 LEN: 3 (150 mA)

GHC 50 Specifications

Buzzer/Alarm Specifications

  • Dimensions (L × Diameter): 29/32" × 1.0" (23 mm × 25 mm)
  • Weight: 2.4 oz (68 g)
  • Temperature range: from 5°F to 131°F (from -15°C to 55°C)
  • Cable length: 10 ft (3.0 m)
DOCUMENTATIONS

Plot your paradise.

This corepack’s compact, brushless SmartPump fits most sailboats and powerboats with a hydraulically steered boating system. It requires a compatible Garmin chartplotter or GHC autopilot instrument.

The SmartPump v2 is a one-size-fits-most solution that provides optimal control and confidence on the water. Plus, gain better thermal performance, higher reliability and lower power consumption.

With its advanced solid-state 9-axis AHRS, you can mount Reactor 40 nearly anywhere, in any orientation. It even reduces power consumption, minimizes heading error and more.

Hold your course on the sea — this autopilot reacts to conditions, so you can remain confident even when you’re pitching or rolling.

All autopilots require commissioning and calibration. Reactor 40 makes it quick and easy.

Gain more freedom when maneuvering your boat. This corepack allows for optional Shadow Drive technology to automatically disengage the autopilot when you turn the wheel.

Control your autopilot from anywhere on your boat by using your compatible Garmin devices, including the Reactor autopilot remote, select quatix marine smartwatches and more (requires a compatible Garmin chartplotter or GHC 50 autopilot instrument).
