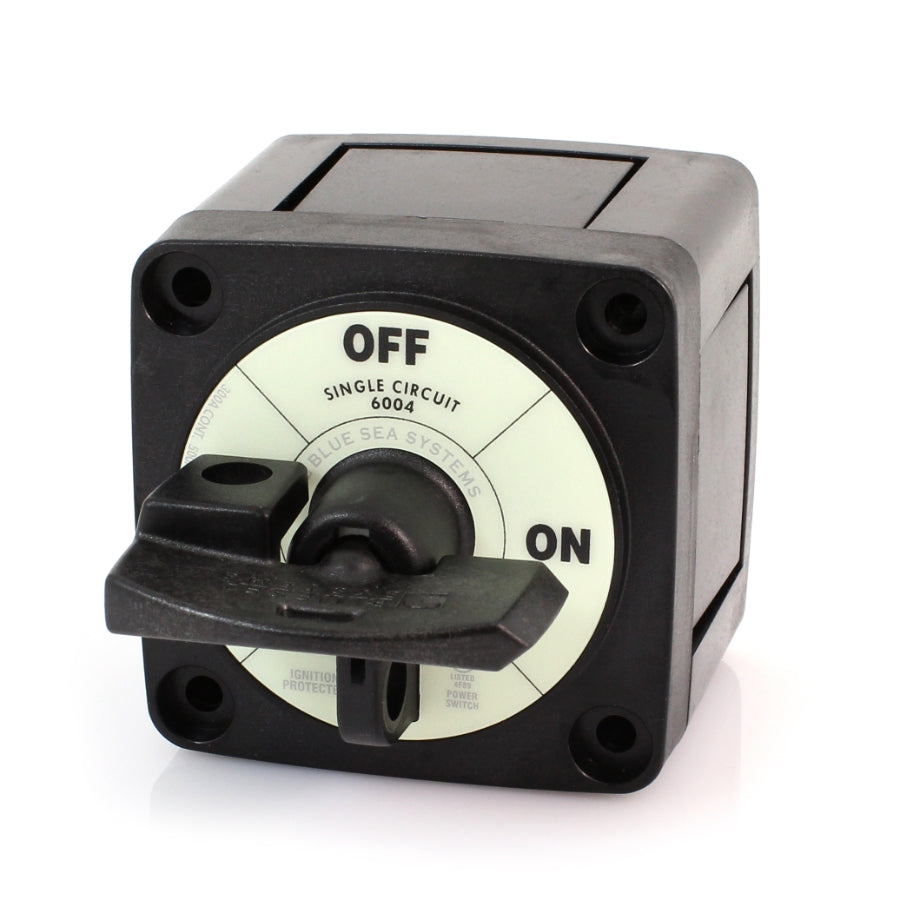

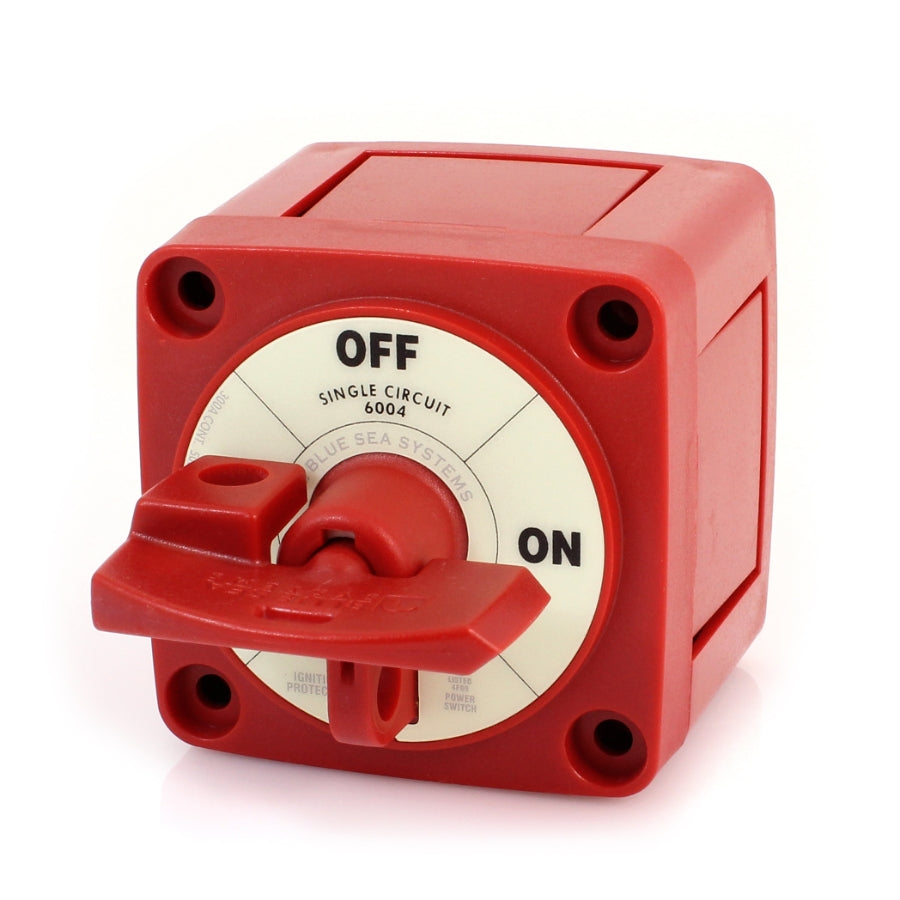

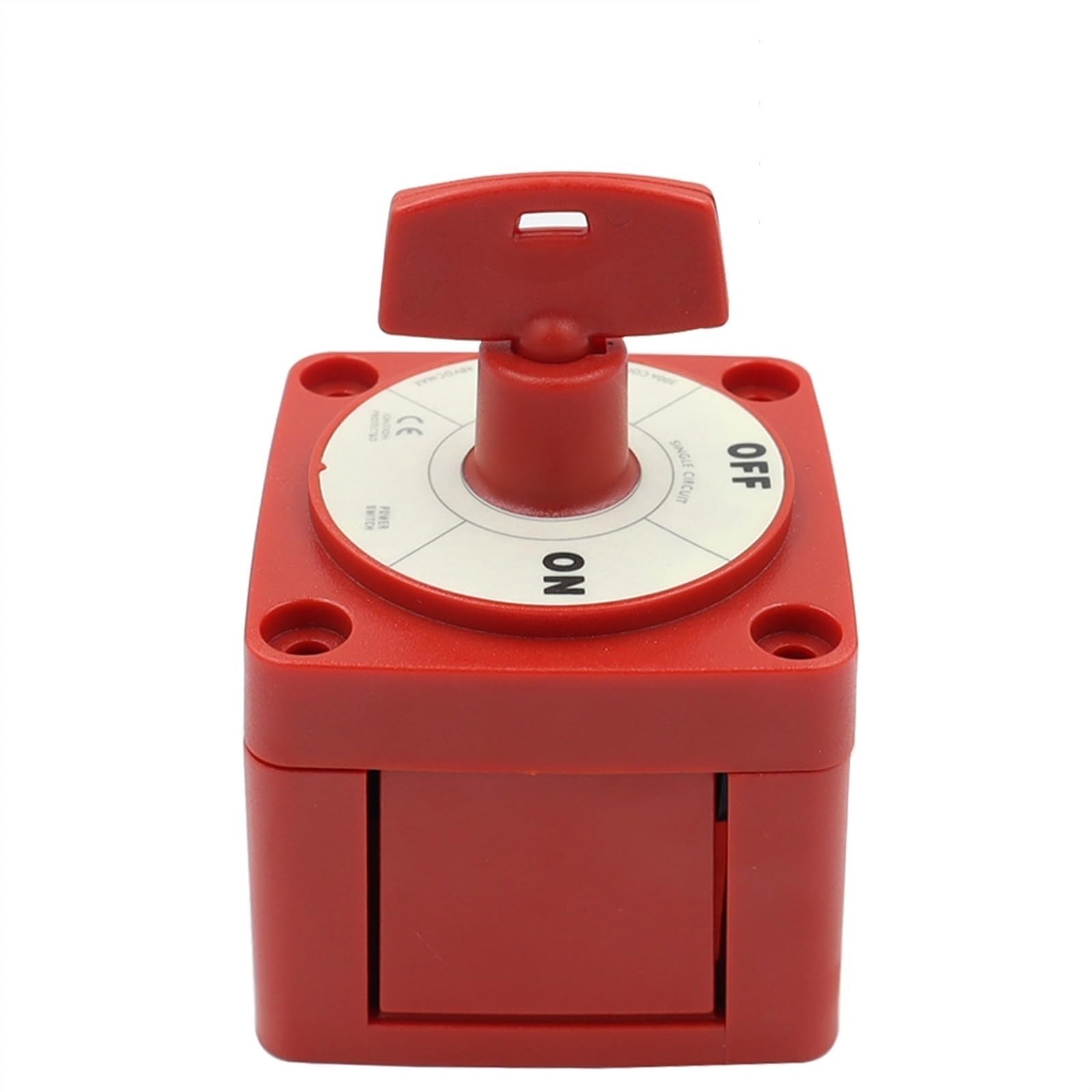

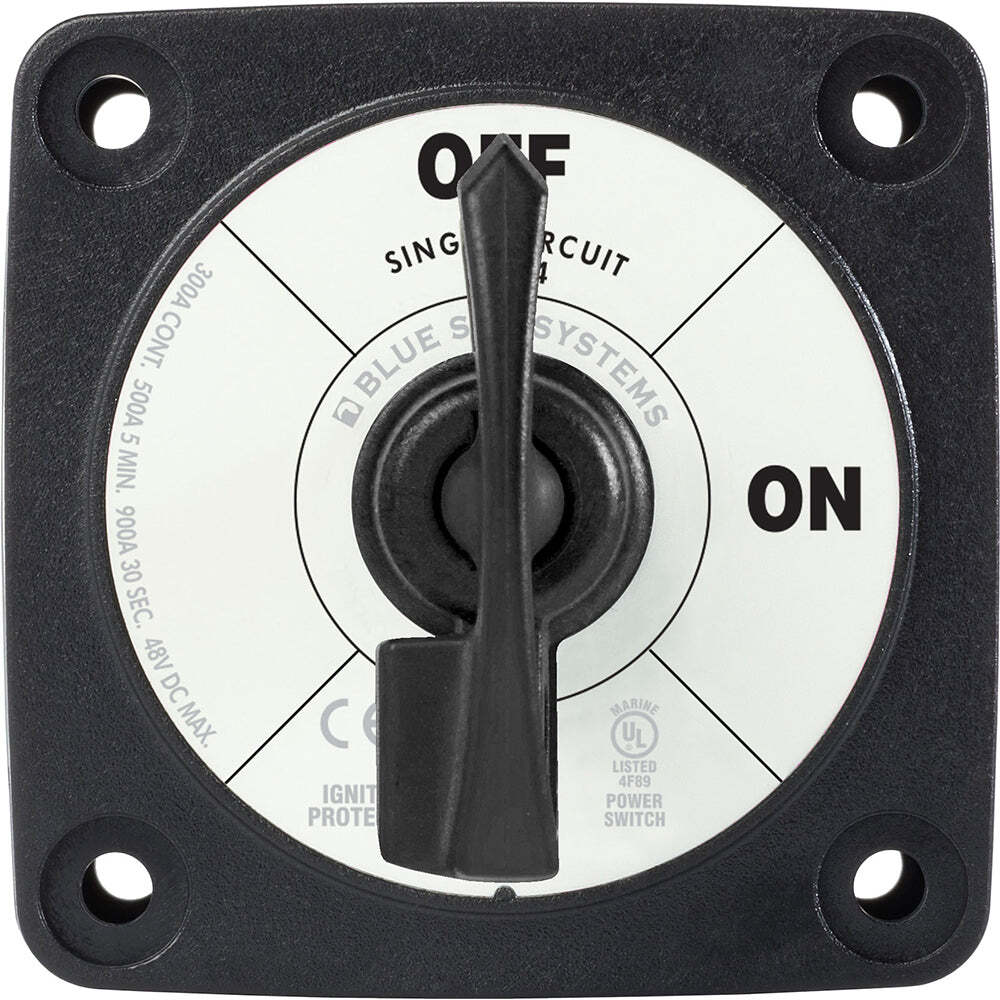

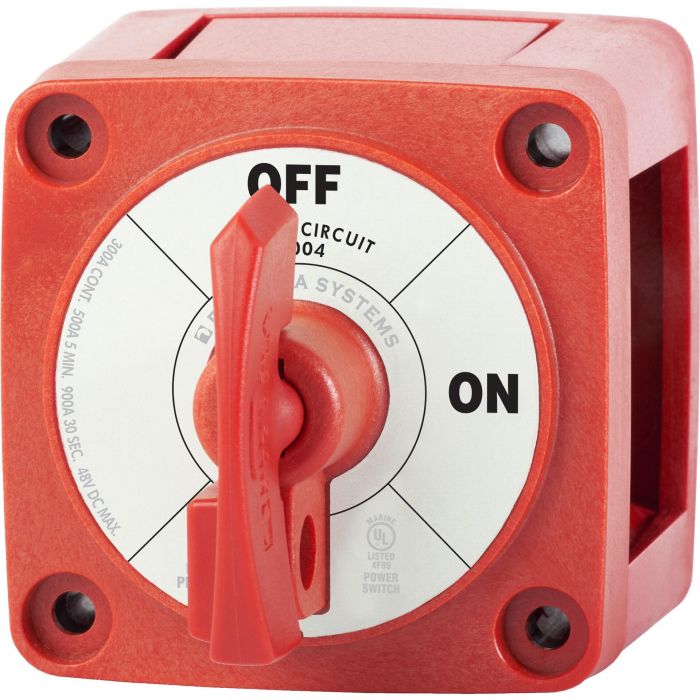

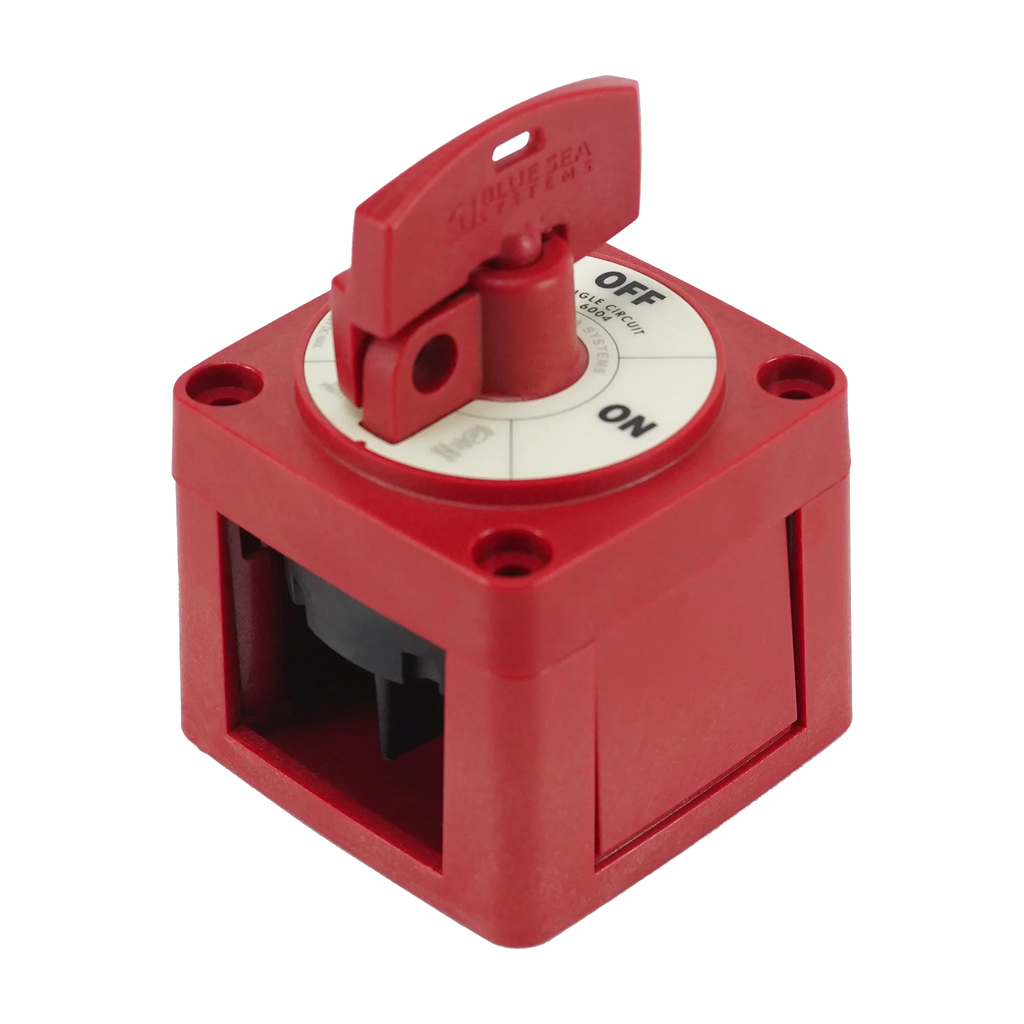

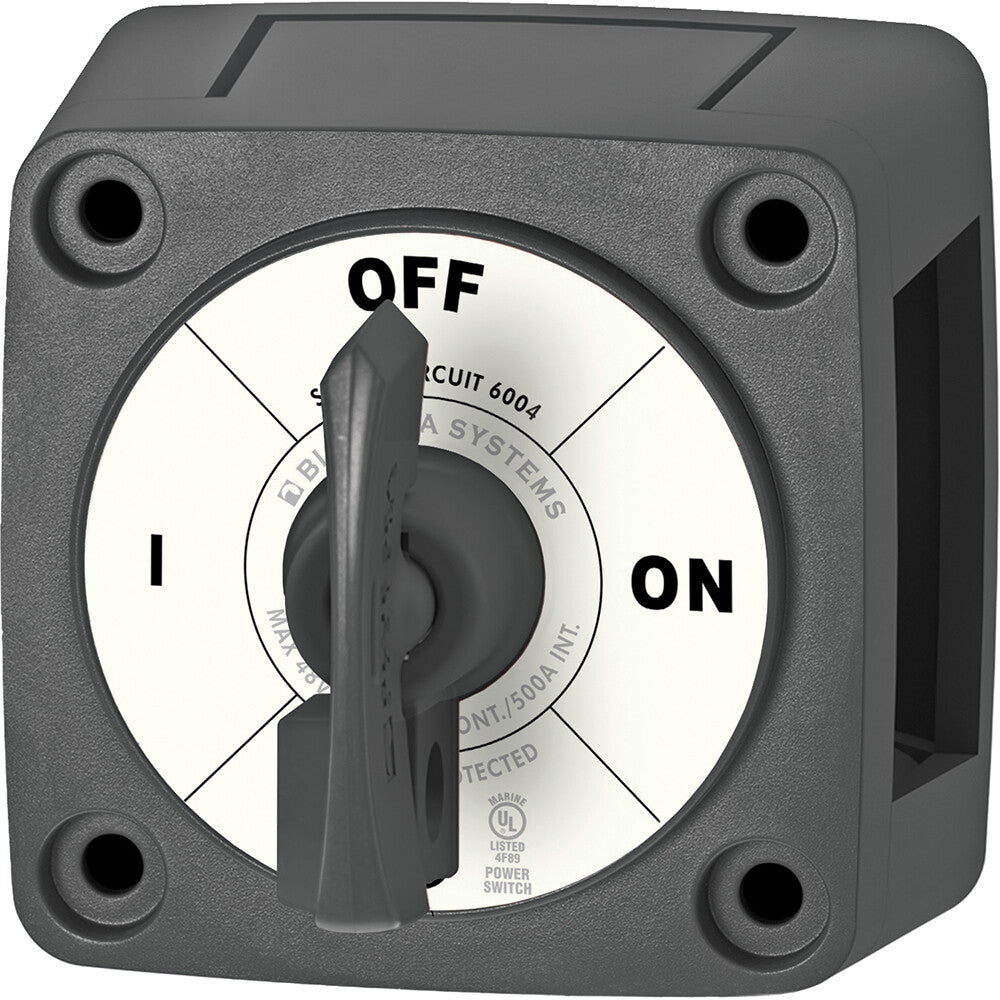

Single Circuit ON-OFF with Locking Key

Blue Sea System

Single Circuit ON-OFF with Locking Key

SKU: 6004200
Pre Order
RM300.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

300 Amps continuous rating for outboards and small gasoline or diesel engines
ColorBlack
SIZES & DIMENSIONS
WHAT'S IN THE BOX
FEATURES
  • Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Studs accept 3/8" (M10) ring terminals
  • 7/8" (22 mm) stud length accepts multiple cable terminals
  • Blue Sea Systems one-piece terminal stud design never loosens over time
  • One-piece stainless flange nuts ensure safe and secure connections
  • Isolating cover protects rear contacts
  • Breakout tabs allow wire access in any direction
SPECIFICATIONS

Switch Type : Single Circuit ON-OFF

Color: Red / Black

Maximum Voltage: 48V DC

Stud Size: 3/8"

Continuous Rating : 300A

Intermittent Rating : 500A

Starting Rating 30 sec : 900A

Stud Material: Tinned Copper

Stud Torque: 120 in-lb (13.56 Nm)

Switching Rating: 25A

Weight: 0.65lb (0.29 kg)
DOCUMENTATIONS

Dimensioned Drawing

Instructions
