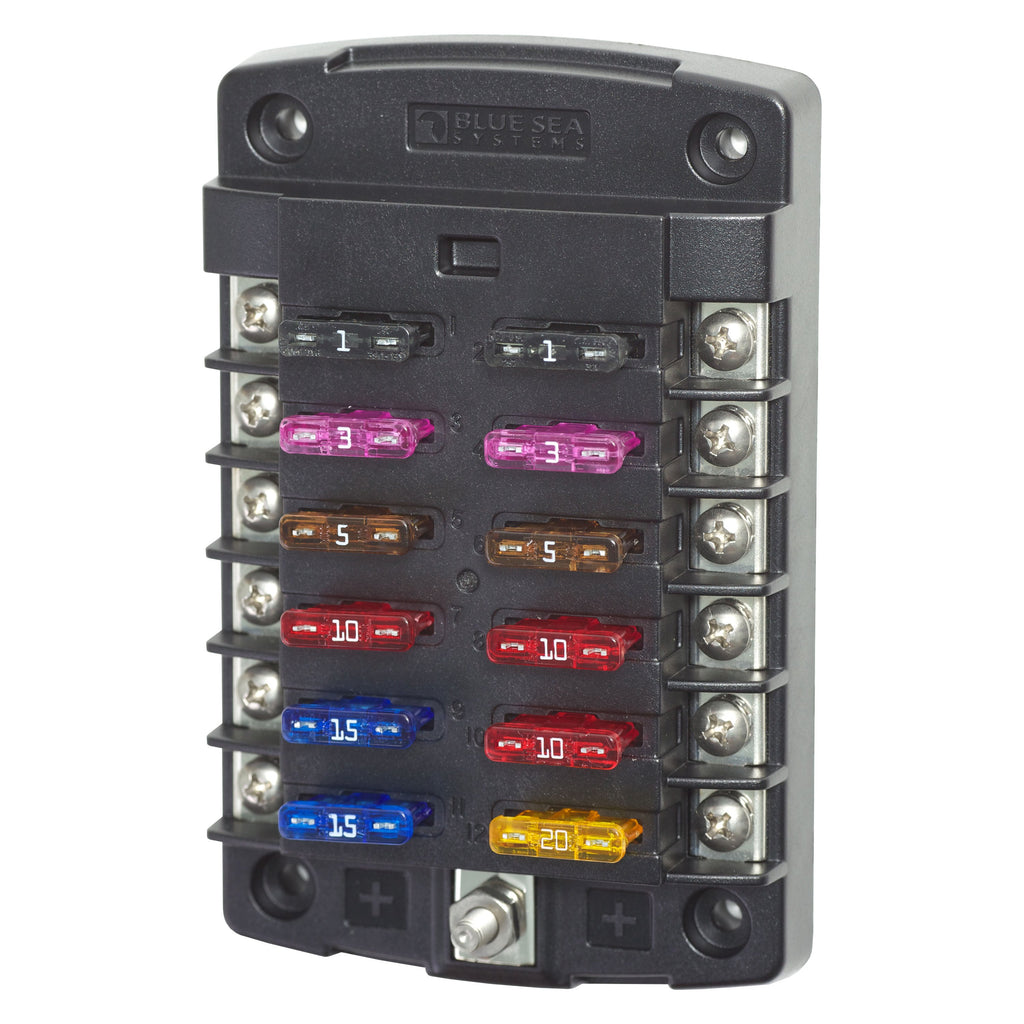

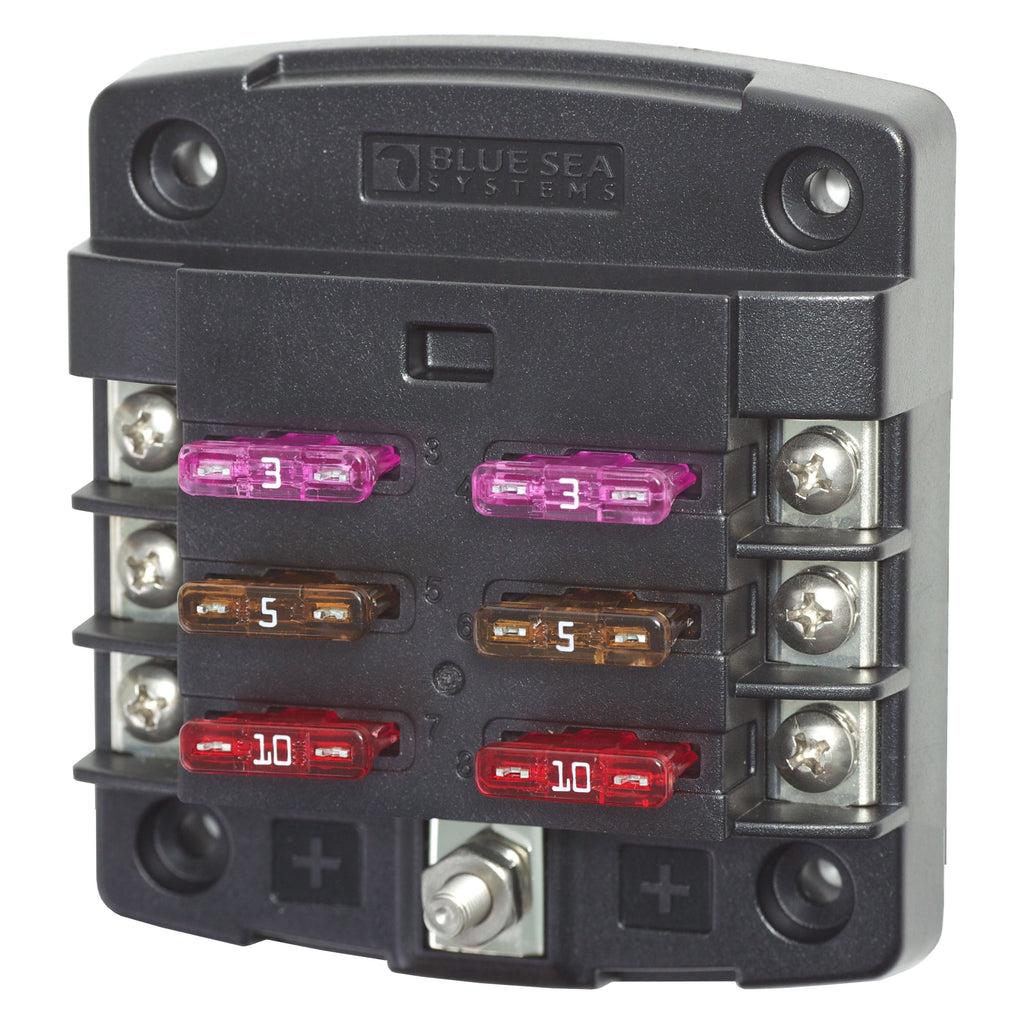

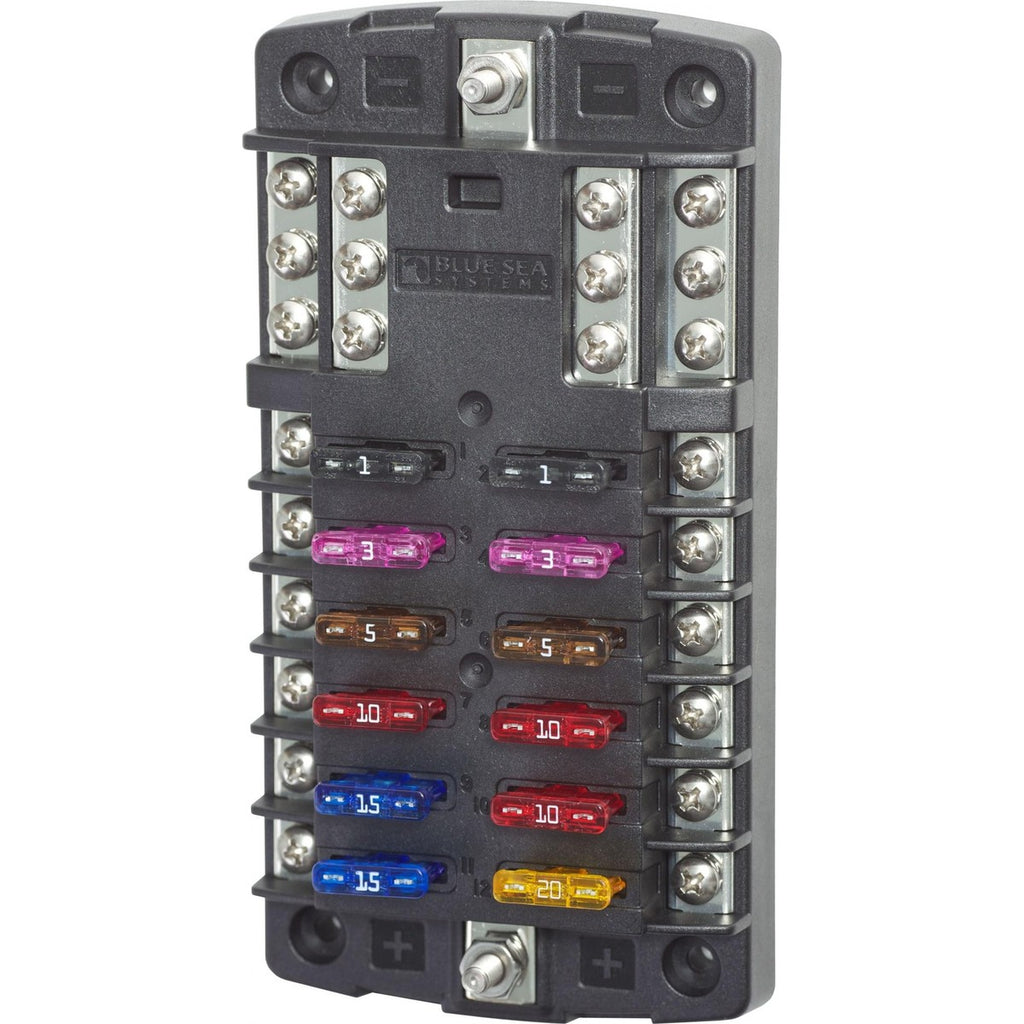

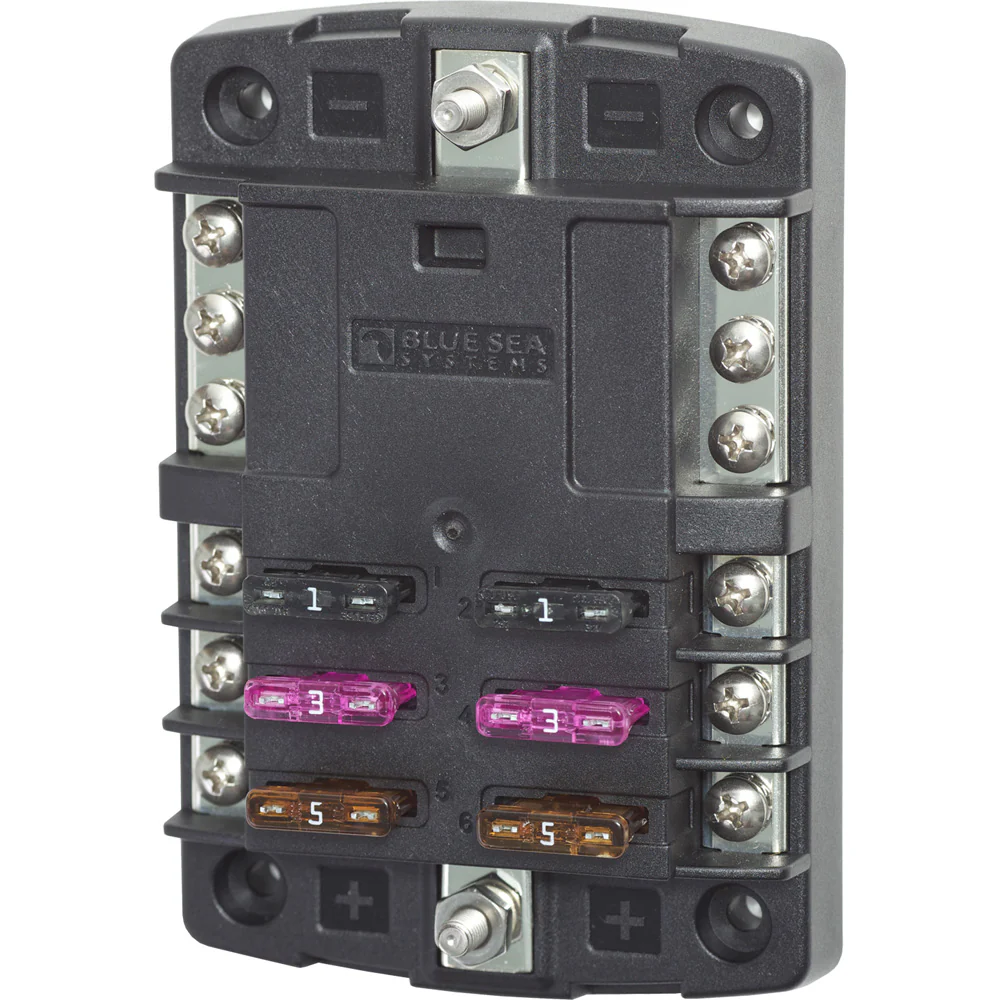

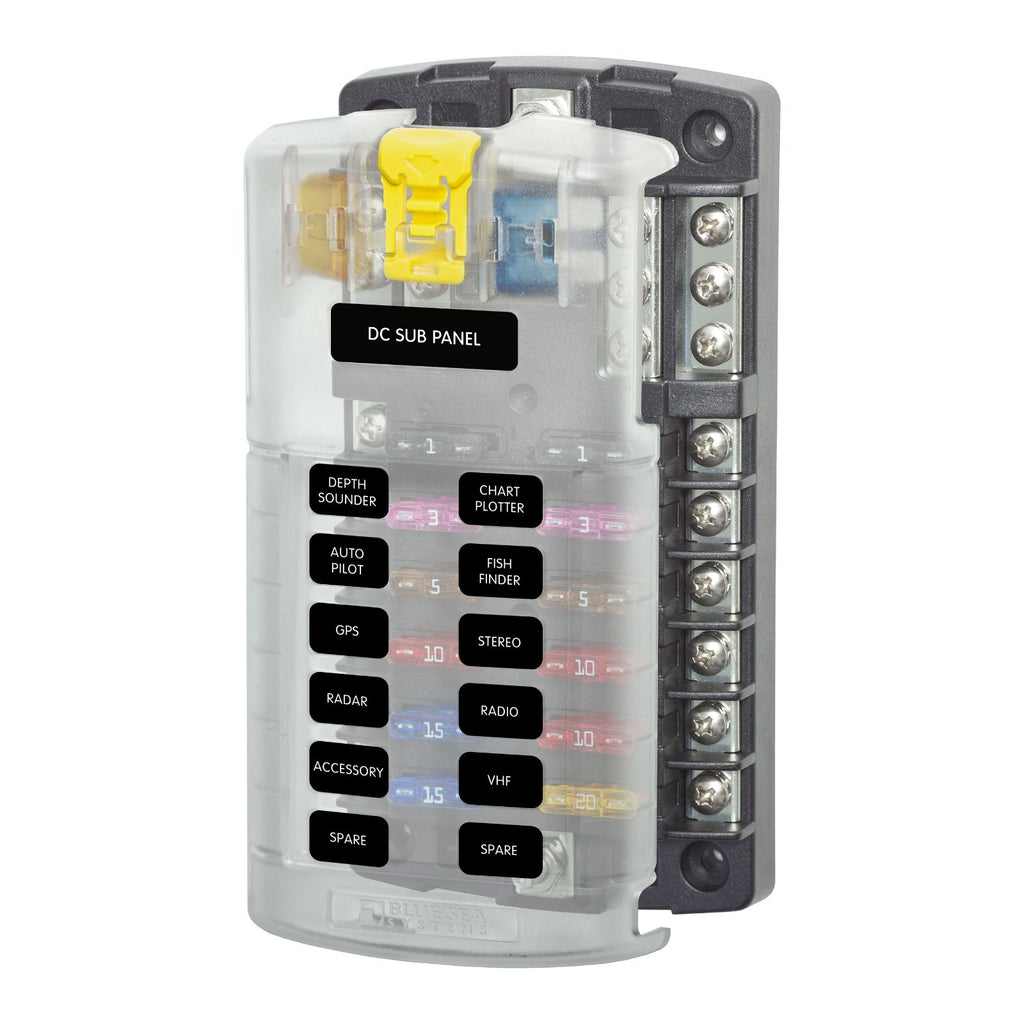

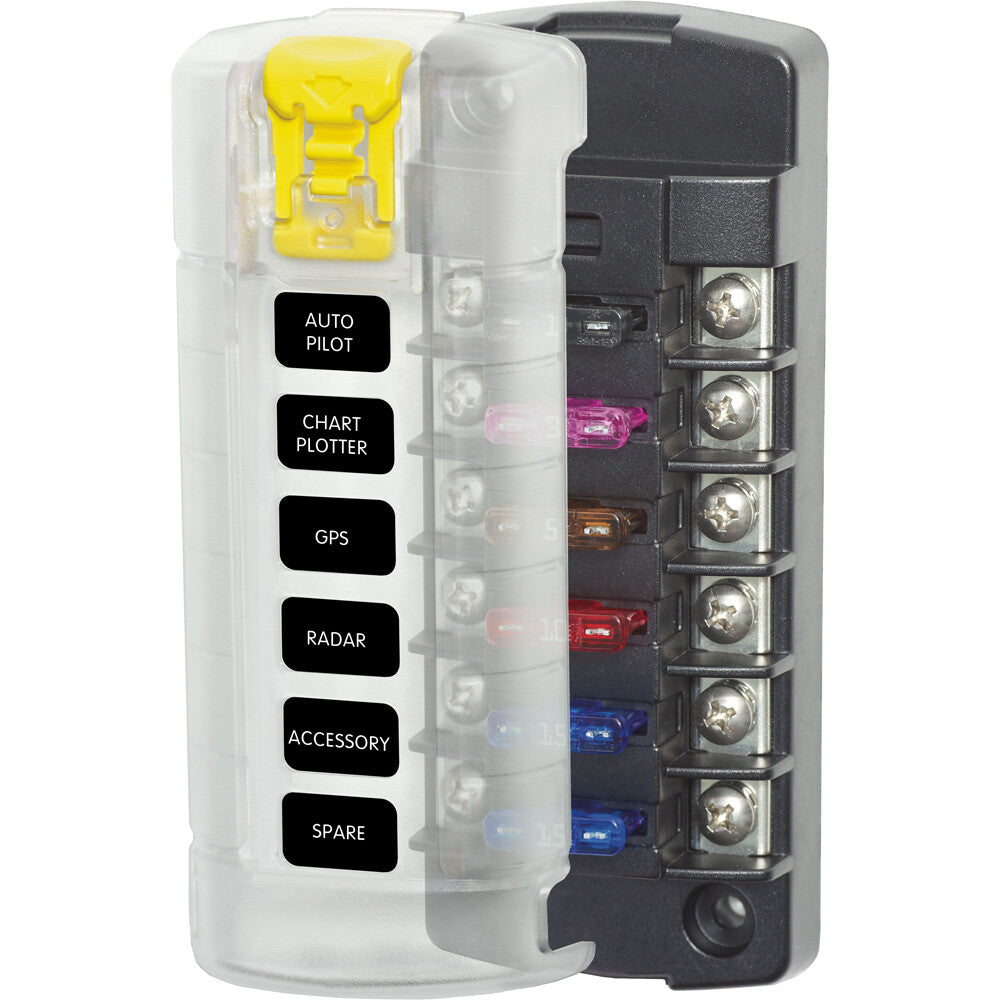

ST Blade Fuse Block

Blue Sea System

ST Blade Fuse Block

SKU: 5026
Pre Order
RM514.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Consolidates branch circuits and in-line fuses
Circuits
Configuration
SIZES & DIMENSIONS
WHAT'S IN THE BOX
FEATURES
  • Positive distribution bus with #10-32 stud
  • Can be used for 24-hour circuits

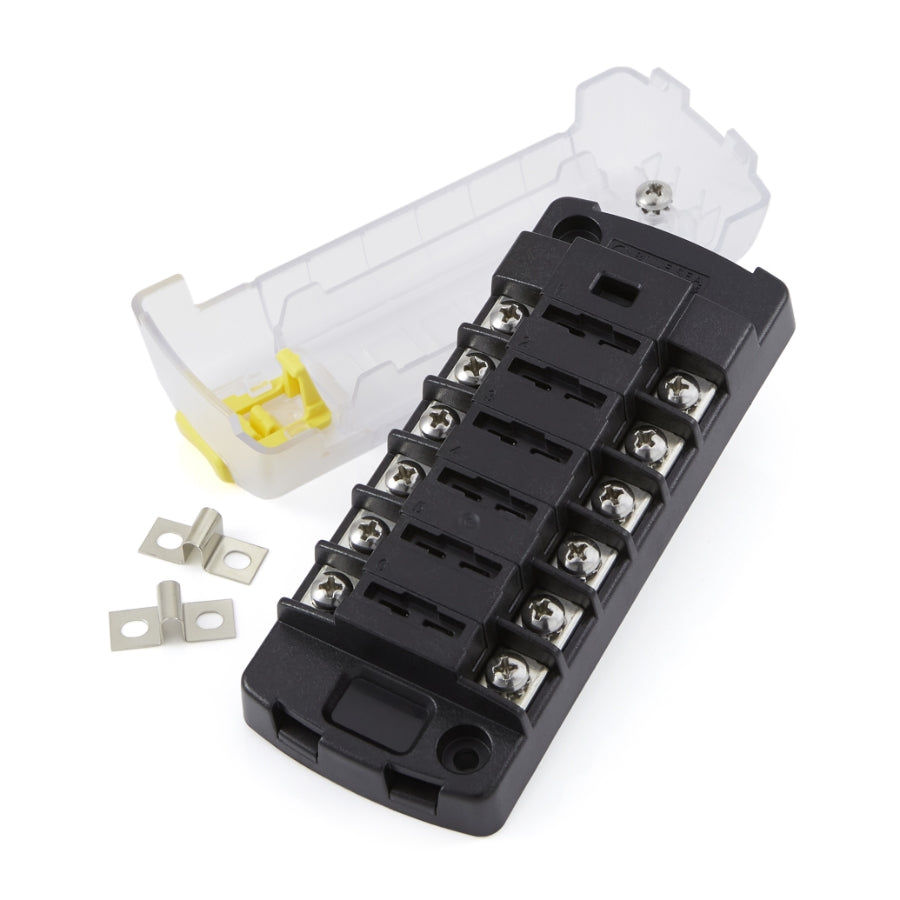

  • Models available with or without a cover

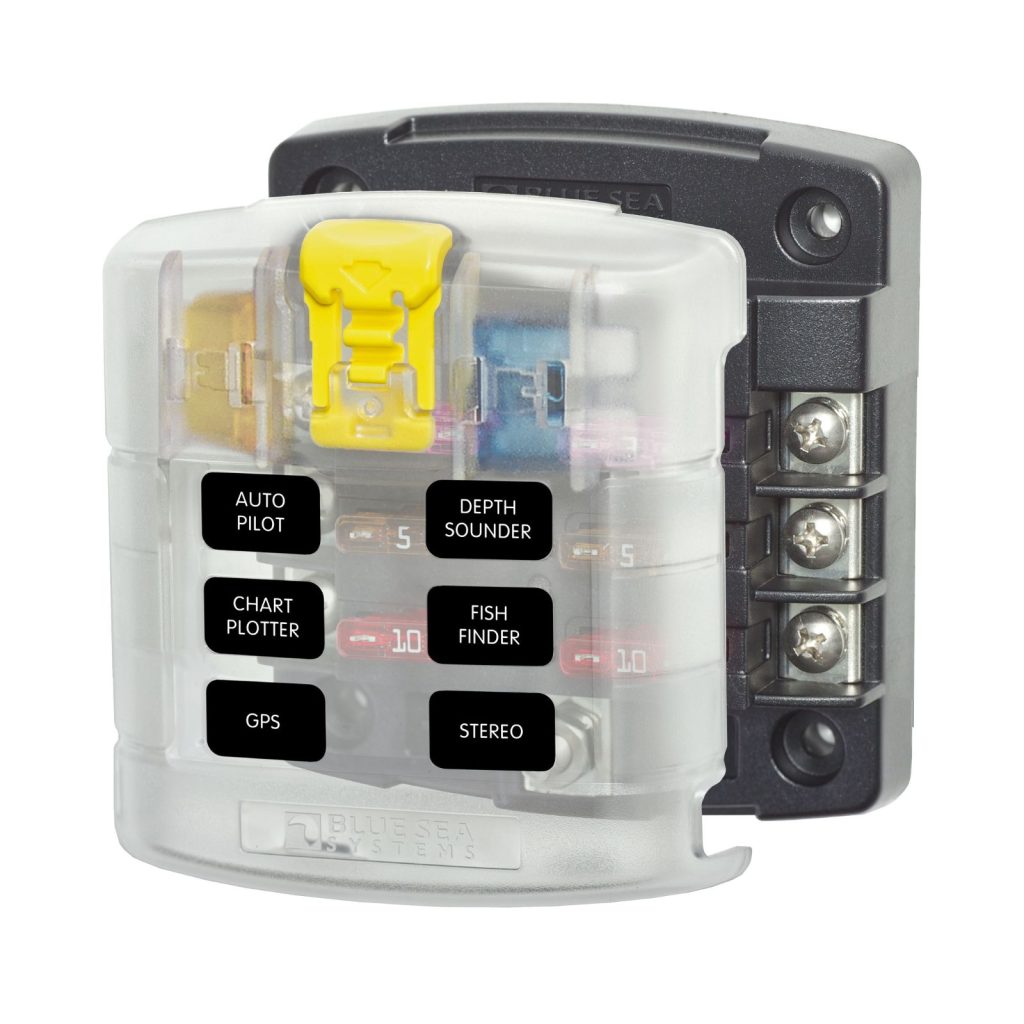

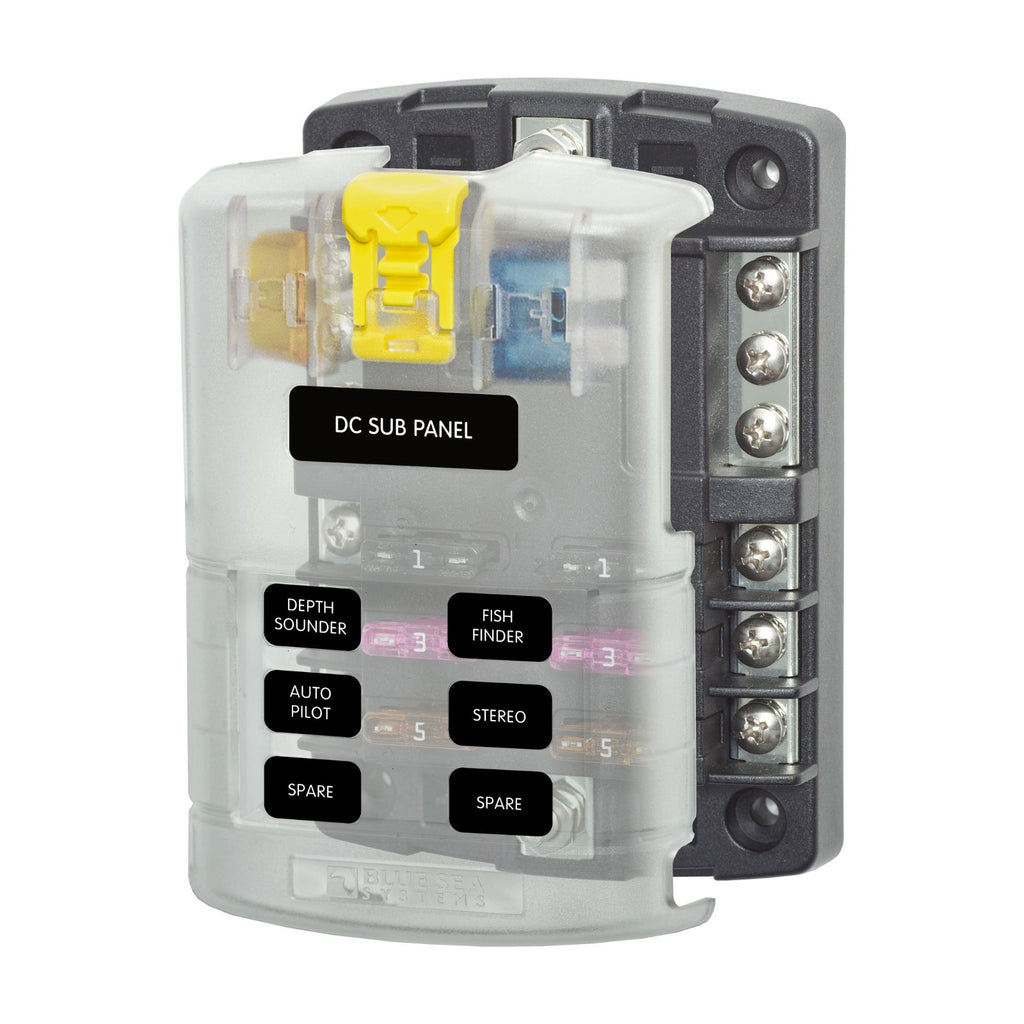

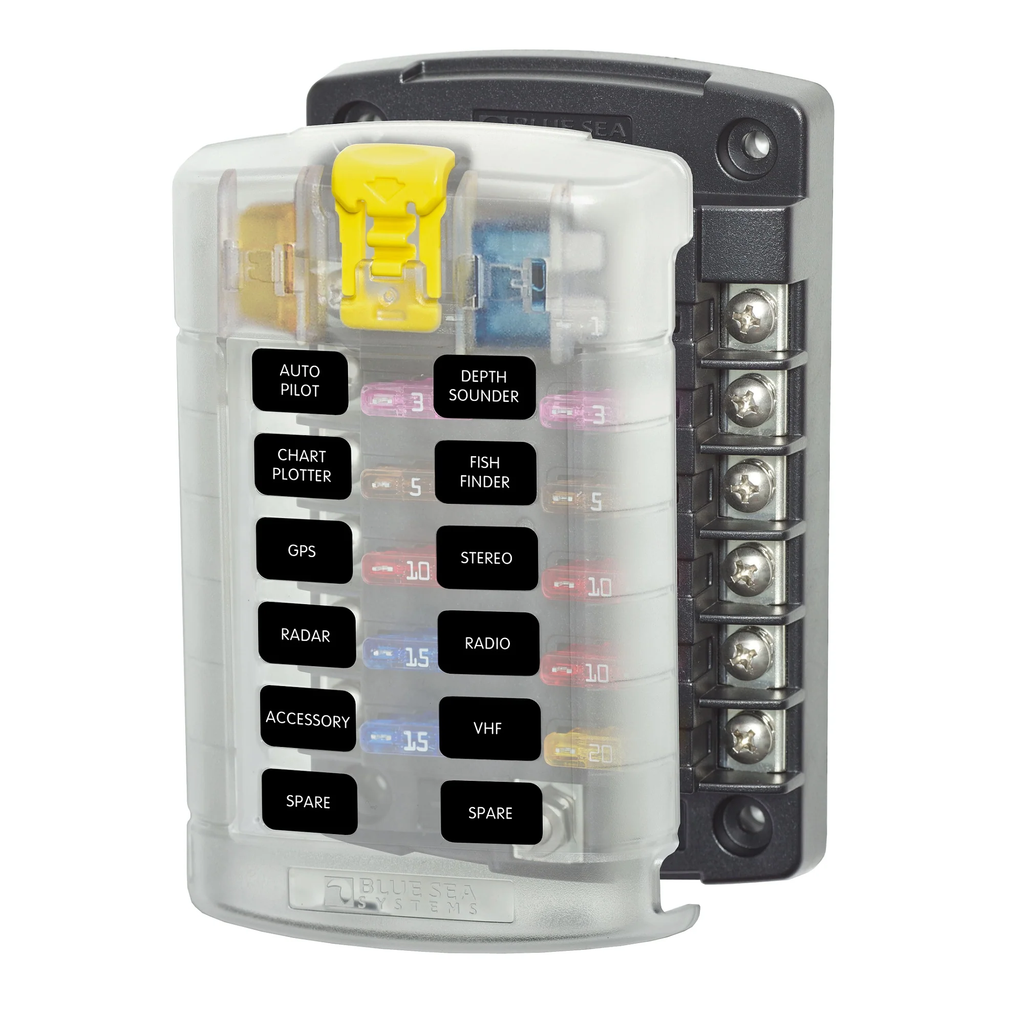

  • Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification
  • Fuse blocks with covers include 20 write-on circuit labels
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Accepts ATO® and ATC® fast acting blade fuses
  • Fuses sold separately
SPECIFICATIONS

Maximum Amperage : 100A per block, 30A per circuit

Maximum Voltage: 32V DC

Mounting: #8 Screw (M4)

Positive Bus: #10-32 Stud

Recommended Torque: 24 in-lb (2.71 N·m)

Screw Terminal Torque: 18 in-lb (2.03 Nm)

Screw Terminal Type: #8-32 Screws with captive star lock washer

Weight: 0.42lb (0.19 kg)
DOCUMENTATIONS

Dimensioned Drawing

Wiring Schematic
