Blue Sea System

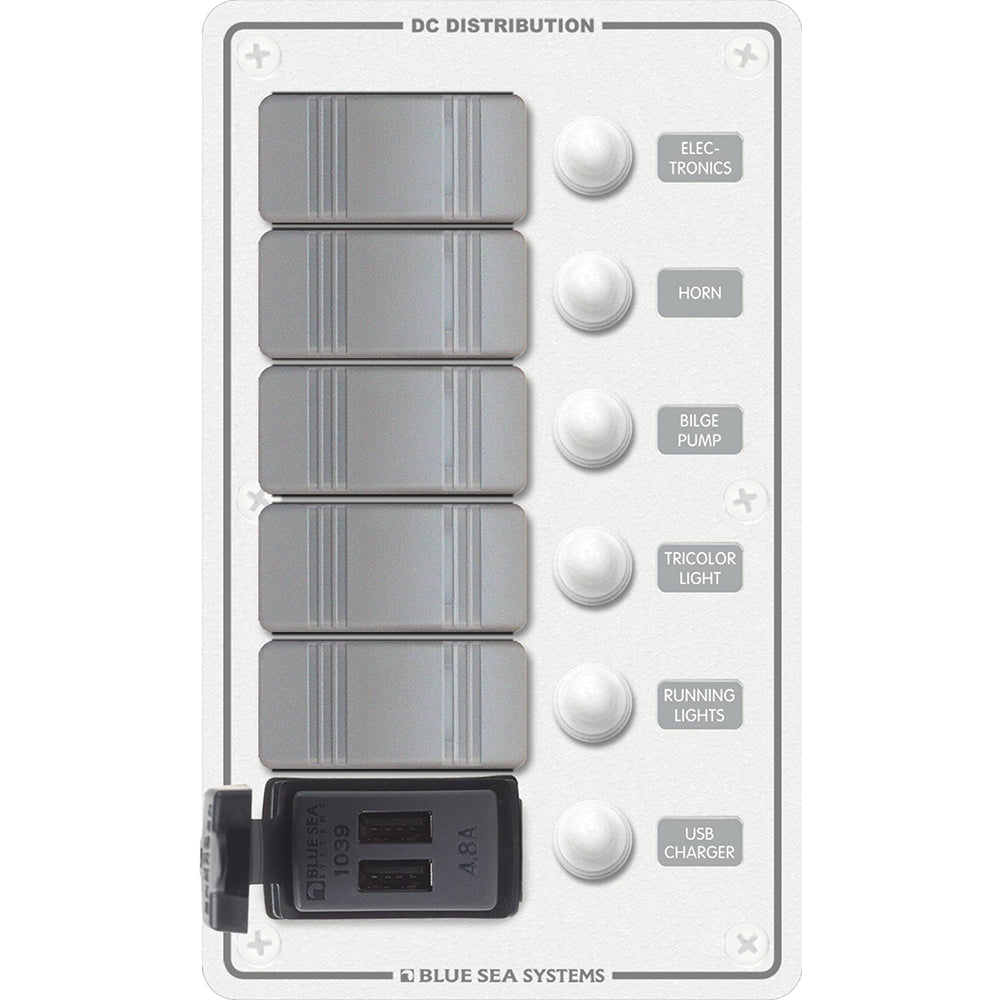

Contura Circuit Breaker Switch Panel with USB Charger - 5 Position

SKU: 8421

Pre Order

RM1,962.00

Buy Now, Pay Later with

Enjoy flexible payments for up to 24 months. Learn more.

Now with integrated charging
Includes 12/24V DC, 4.8A Dual USB chargers with intelligent device recognition that maximizes charge rate
Designed for 12 or 24V DC systems
Watertight mounting gasket
ON indicating LEDs embedded in all switches
8421 and 8521 include a Small Format Label Set 8217 (Gray) or 8214 (Black)
8121 include a Large Format Label Set 8030

Color: White / Black

Nominal Voltage: 12V DC; 24V DC

Circuit Breaker Type: Thermal trip, manual push-button reset only, 15A

Panel Cumulative Rating: 45A

Operating Current: 18mA per Switch

Switch Rating: 20A @ 12V DC, 15A @ 24V DCA

USB: 12/24V Dual USB Charger 4.8A (1039)

Height: 7.5in (190.5 mm)

Width: 4.5in (114.3 mm)

Depth: 3.25in (82.55 mm)
